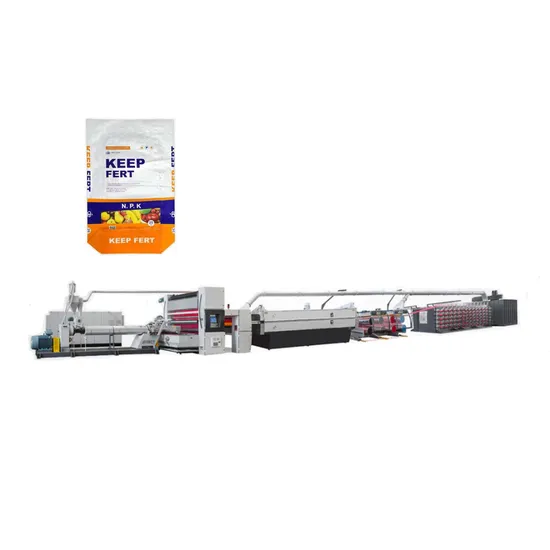

China High Speed Plastic PP Flat Yarn Extruder Machine

Product Description

Application
1.1 The machine is designed on the basis of PP material1.2 Calcium carbonate ≤20%;1.3 The Buyer and the Seller shall confirm the raw material proportion and raw material quality in advance.
To produce PP/HDPE tape for woven bag, cement bag, mesh bag, sunshade net, tarpaulin, jumbo bag, geotextile, carpet backing, artificial grass, etc.
High speed flat film tape extruder is designed and developed on the basis of foreign advanced technology,use computer control and monitoring to make operation more easy and improve the stability of machine operation.Tape cutting unit use new adjustable structure to extend the blade operation life.Updated film lifting and traction unit structure is more fit to high speed flat film tape extruder demands.
Product Description

Type	YX-PLG1200	YX-PLG1500	YX-PLG1800	YX-PLG2000
Max.output of Extruder(kg/h)	350	450	600	650
Screw diameter(mm)	105	120	120	130
Screw L/D Ratio	31:1	31:1	31:1	31:1
Screw Rotational Speed(r/min)	20-132	20-132	20-132	20-132
Die Length(mm)	1200	1500	1800	2000
Plastic tape fiber Density(Tex)	60-200	60-200	60-200	60-200
Max Line Speed(m/min)	450	450	450	450
Winders number (Spindles)	216	312	360	408
Installation Dimension(LxWxH)(mm)	40000x3800x3200	48000x4300x3200	49000x4300x3200	51500x4700x3200

COMPOSED BY

Standard items	Optional items
01) Granula automatic loader	01) Static mixer
02) Extruder	02) Multiple component dosing unit
03) Automatic screen changing filer	03) Direct drive motor for extruder
04) Melt pump system	04) Equipment for processing HDPE
05) Standard T-die	05) Second T-die
06) Water quenching tank	06) T-die for special tape
07) Film haul-off unit	07) Automatic adjust T-die
08) Water removal system	08) Film thickness detecting and control system
09) Tape slitting unit	09) Tape folding unit
10) Film holding unit	10) Tape fibrillator
11) Edge trim recycling system	11) Additional traction godets unit
12) Standard hot air oven (length 6m)	12) Extended hot air oven
13) Standard stretching section with 6 godets including heating unit	13) Electrostatic eliminator
14) Protective cover for stretching section	14) Additional stretching godets
15) Tape vacuunm extraction system including collection box	15) Additional oil heating annealing godets
16) Inverter winder	16) Annealing hot air oven
17) Electrical and control system	17) Additional chilling godets
	18) Winder monitoring system
	19) Water chiller
	20) Cooling water tower
	21) Air compressor station

Remark
* The data depends on specification & quality of tape and the physical & chemical property of raw material.** Specification and dimensions are subject to change without prior notice.*** Special specification and versions on request.
Pingyang Yongxu Packaging CO.,LTD Founded in 2010 at Xiaojiang Town, Wenzhou City, Zhejiang Province, China,
We are professional for complete line of PP Woven bag making machines such as Cement Woven Bag Making Machine, ,Rice Woven Bag
Making Machine, fertilizer Woven Bag Making Machine, Grain Woven Bag Making Machine, corn Woven Bag Making Machine, soybean Woven bag making machines, sesame Woven Bag Making Machine, Jumbo Woven Bag Making Machine, FIBC Woven Bag Making Machine, and Mesh Bag Making Machine, Leno Bag Making Machine, Plastic Rope Making Machine as well.We also make PP Woven bag Production Line such as Cement Woven Bag Production Line, Rice Woven Bag Production Line, fertilizer Woven Bag Production Line, Grain Woven Bag Production Line, corn Woven Bag Production Line, soybean Woven bag Production Line, sesame Woven Bag Production Line, Jumbo Woven Bag Production Line, FIBC Woven Bag Production Line, and Mesh Bag Production Line, Leno Bag Production Line, Plastic Rope Production Line.
It is a specialized manufacturer of series of whole set plastic machinery products such as Complete Line of Woven Bag Making Machines, PP Mesh/Leno Bag/FIBC Woven Bag/Container Bag/Cement Bag/Rice Bag Making Machine,Plastic Bag Making Machine, Plastic Rope Making Machine. Having passed ISO9001:2000 International Quality System authentification and got CE Certificate.
