PLC Control Chocolate Production Line with Nuts Adding Big Central Filling Machinery

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
QJJ175 510
Processing Material
Chocolate
Application
Chocolate
Customized
Customized
Certification
CE, ISO9001
Power Source
Electric
Automatic Grade
Automatic
Casting Head
3+2
Mould Size 1
330*200*30
Mould Size 2
510*200*30
Function
Automatic
Transport Package
Wooden Box
Specification
CE, SGS
Trademark
Lejoy
Origin
Suzhou, Jiangsu, China (Mainland)
HS Code
84382000
Production Capacity
6-15 Moulds/Minute

Product Description

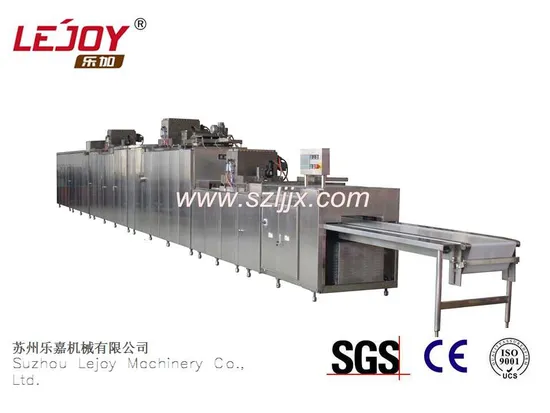

Big Central Chocolate Depositing and Moulding Line
The machine is a special equipment for chocolate casting form. Besids pure chocolate, chocolate with filling, multi-colours and multi-tastes can be produced. The machine set of the second baking mold, pouring three times, three vibration, three cooling, transmission, automatic ejection in one multi-casting machine.
This machine has the quantitative precision (each piston rod are used import seal, each are inlaid stainless steel piston set outside the rod), photoelectric control casting, electrical heating mode, automatic climate control, hot water circulation. It is suitable for the factory which has many varieties and large production capacity.
Main parameter:
Production ability: 6-15 moulds/minute
Mould dimension: 510× 200× 300mm
General power: 28KW (include refrigerate machine)
Weight: 5300KG
Outside dimension: 1800(include 200cm length transportation table)*120*210cm
Pics:
Type Production capacity( moulds/minute) Power(KW) Mould number Mould demensions(mm) Weight
(kg)
Outside dimension(mm)
QJJ150 6-15 7.47 200 275*175*30 500 4000*520*1500
QJJ175 (single casting head) 6--15 19 280 275*175*30 3500 16000*1000*1800
QJJ175( double casting heads) 6-15 23 330 330*200*30 4100 16000*1000*1800
QJJ330-510 6-15 28 380 510*200*30 5300 18000*1200*1900
QJJ275 (3-steps depositing) 6-12 38 410 275*175*30 6500 15420*5270*2100
QJJ1000 6-12 49 580 ---------- 8200 26800*3500*2550

Nuts adding device
PLC CONTROL
Driving system
