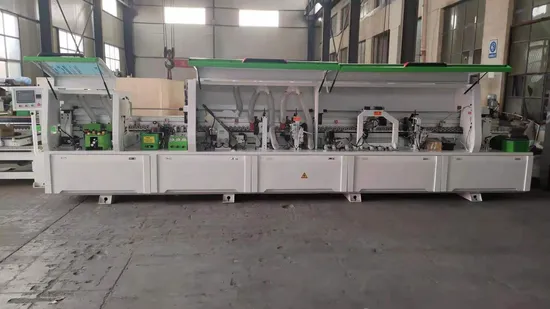

Fully Automatic Edge Banding Machine for Ecological Board Paint-Free Board Woodworking Machinery

US$2,500.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GD2400
Edging thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
13m/min
Certification
CE, ISO, FDA
Panel Thinkness
10-60mm
Min.length panel
120mm
Min.width panel
80mm
Manufacturing Principles
Glue Tank Overhead
Customized
Customized
Edge Banding Thickness
0.4-3mm
Banding Tape Width
10-50mm
Mini Width of Wood
≥80mm
Work Piece Length
≥120mm
Heating Power
0.75kw
Feeding Motor Power
0.75kw
Glue Spreading Motor Power
0.37kw
Fine Trimming Motor Power
0.75kw*2
Polishing Motor Power
0.18kw*2
Feeding Speed
13m/Min
Machine Size
4500*900*1500mm
Gw
2200kg
Color
Customer Needing
Size
Customer Needing
Application
Wood Board
Transport Package
Wooden Case
Specification
4500*900*1500mm
Trademark
Guandiao
Origin
China Jinan
HS Code
8465990000
Production Capacity
50000pieces/Years

Product Description

Product Description
* Automatic edge banding machine can be customized according to clients' demand
* The main functions of this machine include: gumming edge, trimming front and back, fine trimming, scraping, buffing
* The gluing mechanism uses a special structure to evenly coat the sheet and coating material to ensure a stronger bond
* Automatically tracking and high-frequency motor rapid cutting structure through precise guide rail movement ensures cutting surface smooth
* The polishing unit adopts a sheet made of cotton polishing wheel, which is polished to make the surface smoother.
* Apply to MDF . Acrylic plate . Fiber board . Particle board . Solid Board . PVC board
Function: Gluing/Press---End Cutting---Rough Trimming---Fine Trimming---Scraping--Polishing
<Our services>
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
