| US$50,000.00 | 1 Set (MOQ) |

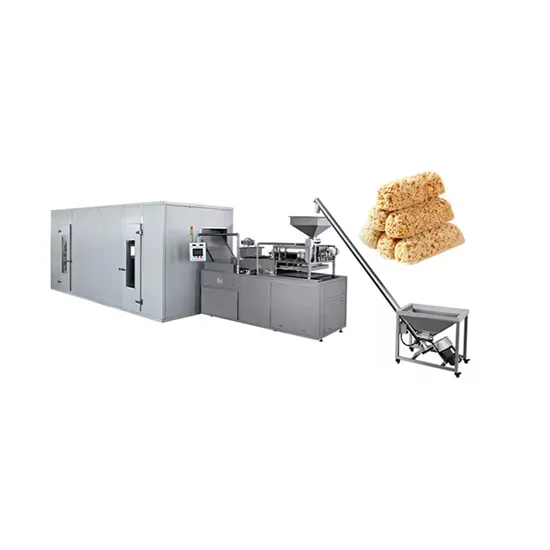

| Application: This machine suits chocolate,oatmeal,millet,peanut,nutlets and any granule particle mixed for the forming production of the coarse grains of sugar. Main performance and characteristics: 1. PLC control, industrial man-machine interface, dialog operation, Chinese display parameters are intuitive and simple, and selection and operation are more convenient 2. It can store dozens of different product formula parameters, and the product replacement can be done with one click. The parameters can be dynamically adjusted during operation 3. The molding part is made of 304 material. The precision rotor pump is more stable and easier to clean, meeting the food hygiene standard 4. The conveying and mixing temperature of chocolate is controlled by a thermostatic device, which can stabilize the constant temperature of chocolate paste 5. Automatic alarm device to remind the fault, chocolate position, low material 6. Direct molding without rework waste and loss 7. Automatic spreading, automatic leveling, automatic cooling, automatic demoulding, large output, high efficiency, no manual work 8. The whole machine is electromechanical equipment, and the molds at the forming place are closely matched, with good forming effect and beautiful finishing 9. The mold is a quick change mold, which is convenient and fast to change |
| Model | HTL-T888A | HTL-T888B |
| Output(kg/24hours) | 20000-24000 | 8000*10000 |
| Speed of cooling(T/min) | 8-11 | 4-5 |
| Shape of goods | shapes can be made according to clients requirements | |
| Qty of mould(n) | 90 | 68 |
| Size of mould(mm) | 800*300 | 800*300 |
| Vlotage | 380V50HZ | 380V50HZ |
| Main motor power(kw) | 5.5 | 5.5 |
| Freezer host power(kw) | 22 | 7.5 |
| Operaiing Temperature(ºC) | 30-35 | 30-35 |
| Cooling capacity(kw) | 49 | 17 |
| Operating temperature of cooling tunnel(ºC) | 5-10 | 5-10 |
| Weight of machine(kg) | 3800 | 3000 |
| Size of machine(L*W*H)m | 10*2.35*1.95 | 7.2*2.35*1.95 |
| Q1. Can I try the machine first? Yes. Q2. Can I use my own logo or design on the products? Yes, we offer OEM/ODM service; your logo and design can be made on the products. Q3. Do you have a factory? Yes, we have a factory in Jiangsu. Welcome to visit our company and factory. We are a professional manufacturer and offer OEM/ODM service to our customers. Q4: Is your factory specialised in food machinery and packaging machinery? Yes, we are a professional manufacturer of food processing and packaging lines, producing fully automatic production lines for candy, chocolate, cereal bars, muesli, potato flour, crisps, baked goods and many other leisure food products, so that you can save your time and worry. Q5. When will the delivery be made? We will make the delivery within the delivery time determined with you, after the equipment is debugged and run without error. |
