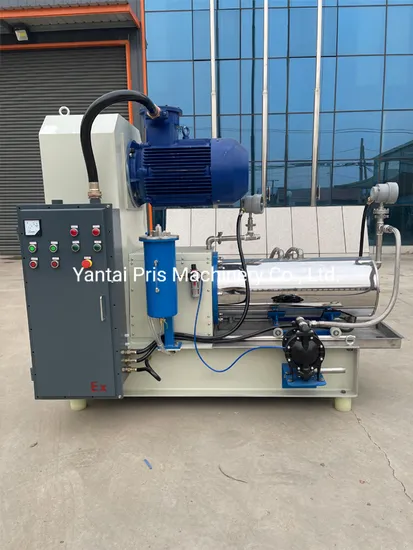

Big Output Explosive Proof Horizontal Pearl Bead Mill for Ultra-Fine Wet Grinding (50L)

Product Description

Detailed Photos
Product Description
1. The horizontal sand mill is a grinding equipment with wide adaptability, advanced and high efficiency. The grinding cavity is relatively narrow, the gap between the levers is small, and the grinding energy is intensive. It is equipped with a high-performance cooling system and an automatic control system, which can realize continuous processing and continuous discharging of materials, which greatly improves the production efficiency.
2. Classification: Horizontal sand mills, also known as bead mills, can be roughly divided into horizontal sand mills, basket sand mills, and vertical sand mills according to their performance.
3. Structure: It is mainly composed of body, grinding cylinder, sand grinding disc (lever), grinding medium, motor and feeding pump. The speed of feeding is controlled by the feeding pump. The grinding media of this equipment are generally divided into zirconia beads, glass beads, zirconium silicate beads, etc.
4. Characteristics: Compared with grinding equipment such as ball mill, roller mill and colloid mill, sand mill has the advantages of high production efficiency, strong continuity, low cost and high product fineness. The process conditions vary greatly, and the fineness requirements can be adjusted and classified by adding or subtracting grinding media in an appropriate amount.
5. Specifications: Our company can provide 5L-200L disk type horizontal sand mills. 5L is generally used for laboratory use. At present, our company is developing 300L-500L large-flow sand mills to meet the needs of large-scale industrial production.

Product Parameters

	Model	PSM-D-5L	PSM-D-10L	PSM-D-20L	PSM-D-30L	PSM-D-50L	PSM-D-100L	PSM-D-200L	PSM-D-300L
1	Grinding chamber capacity	5L	10L	20L	30L	50L	100L	200L	300L
2	Main motor	5.5KW	11KW	18.5KW	22/37KW	30/37KW	45/55KW	75/90KW	90/110KW
3	Length(mm)	1250	1400	1650	1800	1900	2000	2800	3200
4	Width(mm)	650	850	900	900	1000	1000	1200	1300
5	Height(mm)	1350	1450	1450	1450	1500	1900	2200	2300
6	Weight(Kgs)	320	400	500	650	1000	1500	2070	2760
7	Separator type	D	D	D	D/S	D/S	D/S	S	S
8	Notes	The grinding disc type should be chose by raw materials' viscosity and parameter and grinding fineness.

Packaging & Shipping

Our Workshop Show
Our Machines in User's Factory
Our Advantages
We treat every process of design and production with a scientific and rigorous attitude. The laboratory is equipped with a micro-scale sand mill and a nano-scale sand mill for customers to make raw material grinding tests, which is convenient for customers to select models. At the same time, it is equipped with a wet laser particle size analyzer to measure the grinding effect.
We also seriously attach great importance to after-sales feedback, constantly accumulate customer experience, and constantly remodel and innovate. We provide different design and selection suggestions for different industries, and grow together with customers is our original intention.

---
