131.25.500 132.25.500 Three-Row Roller Slewing Bearing Slewing Ring for Large Excavator Accessory Slewing Ring Bearing Tower Crane Bearing with External Gear

Product Description

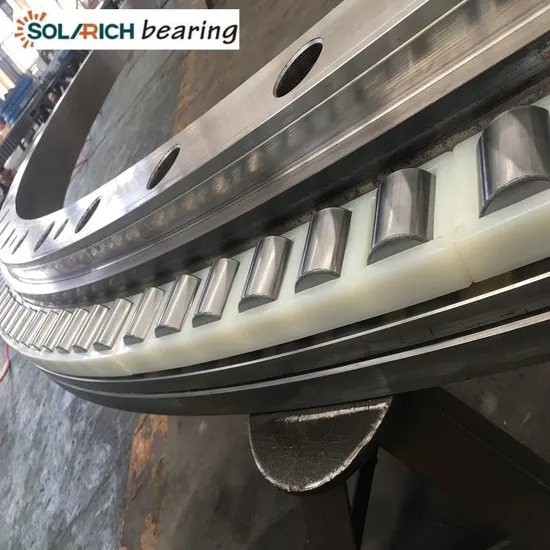

Product DescriptionThree-row roller slewing bearing decreases the bearing diameter by distributing the loads in different directions to different rows of raceways and rollers, which makes the slewing ring more compact and improves the load capacity.
Three row roller slewing bearing the rolling element bearing capacity of a clear division of responsibilities, up and down the rows of roller bearing 90°, give full play to the bearing roller bearing performance, so it is of large axial force of the bearing capacity of the radial force and overturning moment, meets the engineering machinery especially the stacker crane ladle rotating table which is requirement of rotary bearing 360°.Three-row roller slewing ring is ideal for lifting, mining, material transportation, marine, and other engineering machinery.
Product ParametersProduct Specification

Designation			Dimensions			Gear Data							Weight
No Gear	External Gear	Internal Gear	D	d	H	m	Da	Z	da	Z	b	X	kg
130.25.500	131.25.500	133.25.500	634	366	148	5	665	130	335	68	80	0.5	224
	132.25.500	134.25.500	634	366	148	6	666	108	336	57	80	0.5	224
130.25.560	131.25.560	133.25.560	694	426	148	5	725	142	395	80	80	0.5	240
	132.25.560	134.25.560	694	426	148	6	726	118	396	67	80	0.5	240
130.25.630	131.25.630	133.25.630	764	496	148	6	810	132	456	77	80	0.5	270
	132.25.630	134.25.630	764	496	148	8	808	98	456	58	80	0.5	270
130.25.710	131.25.710	133.25.710	844	576	148	6	888	145	534	90	80	0.5	300
	132.25.710	134.25.710	844	576	148	8	888	108	536	68	80	0.5	300
130.32.800	131.32.800	133.32.800	964	636	182	8	1008	123	592	75	120	0.5	500
	132.32.800	134.32.800	964	636	182	10	1010	98	590	60	120	0.5	500
130.32.900	131.32.900	133.32.900	1064	736	182	8	1110	135	688	87	120	0.5	600
	132.32.900	134.32.900	1064	736	182	10	1110	108	690	70	120	0.5	600
130.32.1000	131.32.1000	133.32.1000	1164	836	182	10	1220	119	780	79	120	0.5	680
	132.32.1000	134.32.1000	1164	836	182	12	1224	99	780	66	120	0.5	680
130.32.1120	131.32.1120	133.32.1120	1284	956	182	10	1340	131	900	91	120	0.5	820
	132.32.1120	134.32.1120	1284	956	182	12	1344	109	900	76	120	0.5	820
130.40.1250	131.40.1250	133.40.1250	1445	1055	220	12	1512	123	984	83	150	0.5	1200
	132.40.1250	134.40.1250	1445	1055	220	14	1512	105	980	71	150	0.5	1200
130.40.1400	131.40.1400	133.40.1400	1595	1216	220	12	1668	136	1140	96	150	0.5	1300
	132.40.1400	134.40.1400	1595	1216	220	14	1666	116	1134	82	150	0.5	1300
130.40.1600	131.40.1600	133.40.1600	1795	1405	220	14	1876	131	1330	96	150	0.5	1520
	132.40.1600	134.40.1600	1795	1405	220	16	1872	114	1328	84	150	0.5	1520
130.40.1800	131.40.1800	133.40.1800	1995	1605	220	14	2072	145	1526	110	150	0.5	1750
	132.40.1800	134.40. 1800	1995	1605	220	16	2080	127	1520	96	150	0.5	1750
130.45.2000	131.45.2000	133.45.2000	2221	1816	150	16	2267	138	-	-	105	0.9	1120
	132.45.2000	134.45.2000	2221	1779	231	16	2304	141	1696	107	160	0.5	2230
130.45.2240	131.45.2240	133.45.2240	2461	2019	231	16	2560	157	1920	121	160	0.5	2700
	132.45.2240	134.45.2240	2461	2019	231	18	2556	139	1926	108	160	0.5	2700
130.45.2500	131.45.2500	133.45.2500	2721	2279	231	18	2826	154	2178	122	160	0.5	3000
	132.45.2500	134.45.2500	2721	2279	231	20	2820	138	2I78	110	160	0.5	3000
130.45.2800	131.45.2800	133.45.2800	3021	2579	23]	18	3114	170	2484	139	160	0.5	3400
	132.45.2800	134.45.2800	3021	2579	231	20	3120	153	2480	125	160	0.5	3400
130.50.3150	131.50.3150	133.50.3150	3432	2579	270	20	3540	174	2760	139	180	0.5	5000
	132.50.3150	134.50.3150	3432	2868	270	22	3542	158	2750	126	180	0.5	5000
130.50.3550	131.50.3550	133.50.3550	3832	3268	270	20	3940	194	3160	159	180	0.5	5600
	132.50.3550	134.50.3550	3832	3268	270	22	3938	176	3146	144	180	0.5	5600
130.50.4000	131.50.4000	133.50.4000	4280	3718	270	22	4400	197	3608	165	180	0.5	6400
	132.50.4000	134.50.4000	4280	3718	270	25	4400	173	3600	145	180	0.5	6400
130.50.4500	131.50.4500	133.50.4500	4782	4218	270	22	4906	220	4114	188	185	0.5	6942
	132.50.4500	134.50.4500	4782	4218	270	25	4900	193	4100	165	185	0.5	6942

Company Profile
Luoyang solarich machinery Co., Ltd. is a professional manufacturer of bearings, We can design and manufacture single-row ball slewing bearings, double-row ball slewing bearings, three-row roller slewing bearings, ball combination slewing bearings, crossed roller bearings, crossed tapered roller bearings Bearings, slewing drives and custom bearings.
Subordinate factories use high-quality chrome steel and stainless steel as raw materials, specializing in the design, development and manufacture of deep groove ball bearings, stainless steel bearings, stainless steel outer ball bearings , tapered bearings , cylindrical bearings, needle bearing , thrust bearing , bearing housing and non-standard bearings.
Adhering to the business philosophy of "Quality and Integrity", we will continue to provide excellent bearings and high-quality services to serve global customers.
Our AdvantagesWith a professional team and advanced manufacturing technology, it is in a leading position in the research and development of slewing rings and customized bearings, with reasonable design structure, light weight, strong bearing capacity and strong versatility. Bearing diameters range from 200 to 15000mm, with accuracies covering P0, P6 and P5 grades. Our slewing rings, precision bearings and custom bearings are used in a wide range of industries including construction, engineering, mining, marine, chemical, wind turbines, medical equipment etc.
Solutions
Playground EquipmentSlewing bearing can provide excellent performance experience and safety guarantee for amusement equipment, and the durability of slewing bearing is also the main concern of technical engineers. For more than 20 years, slewing bearing solutions have been used in many key applications of large amusement equipment. reflect.
We designed the cross-sectional area to remain the same as the raceway center distance increased, and the slewing ring achieves better dynamic capabilities with less mass.
Key advantages include:
* Lighter weight
* Save spaighter weightce
* Long life and lower maintenance costs
* Better stiffness
* Better lubrication in extreme conditionsMedical Device
With the comprehensive development of scientific and technological strength, the social economyu has been improved faster, and the medical equipment has also been comprehensively improved.Mining & construction machineryMining machinery and heavy construction machinery industry uses a range of different types of highly specialized mobile machinery. . The places where mining machinery and construction machinery are active are mostly mining sites such as mountains and deserts that are far away from ordinary human life. These heavy machinery work in the harshest environments and require continuous low-friction work without reducing load capacity and minimum. assembly and adjustment time. Solving the bearing heating problem caused by the large exciting force, high vibration frequency and continuous operation of vibratory rollers for users has become the focus of the work. Mineral crushing machinery, cutting machinery, screening machinery, loading machinery, conveying machinery and other equipment in the use environment of bearings, users desire products with robustness, durability and high reliability to resist these harsh working conditions.
Transportation vehicleMetric and inch needle roller bearings have various structural types, mainly including open drawn cup needle roller bearings, closed drawn cup needle roller bearings, needle roller bearings with inner ring and needle roller bearings without inner ring/without inner ring Cage needle roller bearings, caged and cageless needle roller bearings. Widely used in automobiles, motorcycles, mopeds, power tools, textiles, agricultural machinery, printing machinery, construction machinery, automatic instruments and other fields.
Automatic machineryIndustrial robot bearings mainly include two categories: one is thin-walled bearings, and the other is crossed cylindrical roller bearings. In addition, there are harmonic reducer bearings, linear roller bearings, spherical plain bearings, etc. Bearings with good performance have large bearing capacity, good rigidity, high rotation precision and easy installation.
Packaging & Shipping
FAQ Q: Are you trading company or manufacturer?A: We are bearing manufacturer.Q: How do you control quality of bearing?A: All products and services passed ISO9001-2008 Quality Certificate.Q: What is the MOQ?A: It depends on the bearing type. You can send inquiry or send e-mail for more information.Q: How about the package?A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.Q: How long is the delivery time?A: It will take about 10 to 40 days, depends on the model and quantity.Q: How about the shipping?A: We can arrange the shipment or you may have the forwarder.Q: Is sample avaiable?A: Yes, sample order is acceptable.Q: Can we use our own LOGO or design on bearings?A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.

---
