Radial Drill Press machine for Drilling and Tapping

Product Description

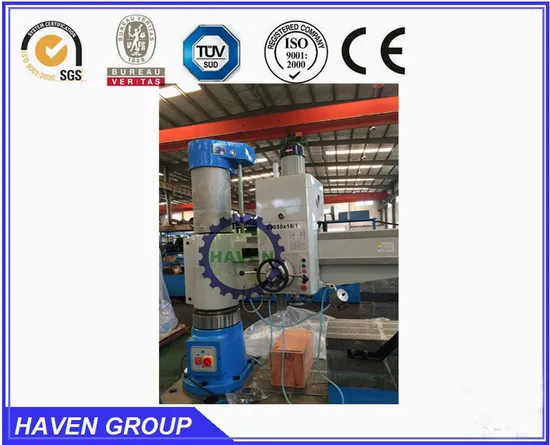

Z3032x10 Radial Drilling Machine
1.* The Radial Drilling Machine, It's construction designed elaborately, with pefect appearance and convenlent maintenance.
* The headstock radial arm and colummns are clamped by manual clamping mechanisms.
* It has feature of wide speed and feed range,compact operation key, reliable and enough rigidy.
* The machine has a sample rigidity and power in drilling, counter boring, spot facing reaming,tapping, even boring when equiped with a special device. It is widely used in every department of machining medium and small sizes workpieces.
2.parameter :

Model	Z3032×10	Z3040×10
Max.Drilling capacity (mm)	32	32
Distance spindle axis to column generating line (mm)	200-1000	200-1000
Diameter of column (mm)	240	240
Spindle taper	MT4	MT4
Spindle travel (mm)	250	250
Spindle speeds range (r/min)	71-1800	71-1800
Spindle speeds series	8	8
Range of Spindle feeds (r/min)	0.13-0.54	0.13-0.54
Mpindle Spindle feeds	4	4
Max.Distance spindle nose to working surface of base (mm)	264-1064	264-1064
Dimension of worktable (mm)	400×450×400	400×450×400
Dimension of base (mm)	1500×740×160	1500×740×160
Overall Size (mm)	1730×750×2350	1730×750×2350
Power of Main motor (kW)	2.2	3
G.W/N.W (kg)	1700/1400	1700/1400
Packing dimension (cm)	187×97×217	187×97×217

3.Stander accessories:
1.)Box shape worktable
2.)Taper sleeve
3.)Tool releasing Wrench
4).Drift
5).Eyelet bolts
4..Special accessories:
1).Quick instead chuck
2.).Tapping chuck
3 ) Grease gun

---
