US$3,000.00-20,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Certification
CE, ISO 9001
Functions
Drilling, Milling, Tapping
Maximum Drilling Capability
Dia 50mm
Maximum Tapping Capability
M45(Able to Milling Thread)
Position/Repeat Precision
+/-0.01mm
X Axis Work Stroke
520mm (Spindle Feed Stroke)
Y Axis Work Stroke
190mm(with Brake Function)
Z Axis Work Stroke
280mm (Main Spindle Travel)
Transport Package
Standard Wood Packing
Production Capacity
200 Sets
Product Description

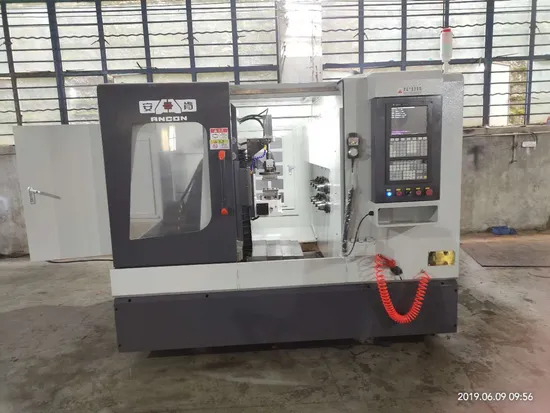

Horizontal CNC Drilling Milling and Tapping Machine AC-Wsk-8z
WIDELY USED FOR MASS PRODUCTION OF CARTRIDGE HOLE MACHINING
Product Description
ADVANTAGES:
1) Over 20 years experience in brass casting and machining equipment. 2) First and most accepted China brand. 3) Most competitive price and quality. 4) Short delivery time. 5) Instant aftersale service on line. 6) Import and Export License. 7) OEM. APPLICATION: Widely used in Brass, Copper, Alumium alloy machining(Drilling and Tapping) for Plumbling Hardware, Faucets, Valves, Car Spares, etc..
Especially for the cartridge machining. SALE & AFTER-SALE SERVICE: Warranty 1 year free. Lifetime maintenance. Afersale service: instant and fluenct English service, by on line chatting, or by phone, or by local agent repair(such as India, Iyan, etc.), or other way by negotiation.
chinadelin.en.made-in-china.com MAIN TECH. SPEC:
| Name | Horizontal CNC 8 spindles drilling, milling and tapping machine |
| NO | Main configuration | Main configuration | Unit | Brand | Remark |
| Item | Name |
| 01 |
X spindle | X spindle servo motor | 1.5KW | 1 | chinese |
Max stroke 550mm, max speed 20m/min |
| X spindle ball screw rod | R3210 | 1 | Hiwin or PMI |
| X spindle line rail | RGH30HA | 2 | Hiwin or PMI |
| 02 | Y spindle |
Y spindle servo motor | Power 1.5KW | 1 |
chinese | Max stroke 300mm, max speed 20m/min |
| Y spindle ball screw rod | R3210 | 1 | Hiwin or PMI |
| Y spindle line rail | RGH30HA | 2 | Hiwin or PMI |
| 03 | Z spindle | Z spindle Servo Motor with Brake | Power 2KW | 1 | chinese |
Max stroke 300mm, max speed 20m/min |
| Z spindle ball screw rod | R3210 | 1 | Hiwin or PMI |
| Z spindle line rail | RGH35 HA | 2 | Hiwin or PMI |
| 04 | enclosure | Main spindle power 5.5KW
main spindle speed 10-3500r/min
quantity:8
sleeve stroke:80mm | 1 | ancon | |
>>
