TV Antenna Power AC DC F Plug Adapter Antenna Adapter

Product Description

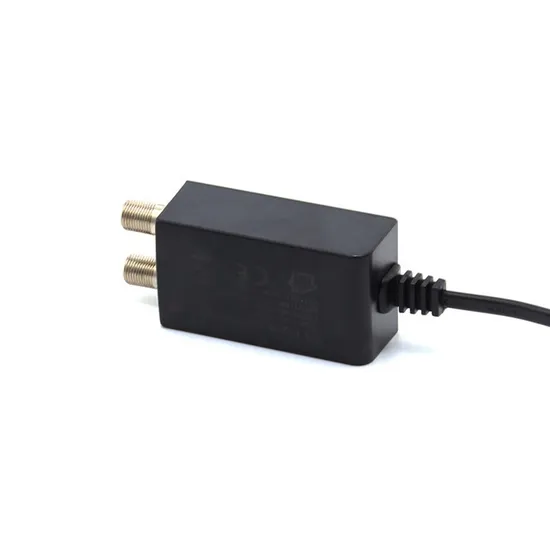

TV Antenna Power Adapter 24V 12V 200mA 450mA AC DC F Plug Adapter Antenna Adapter PRODUCT SHOW

Specification:

Model:	YSF5
Power:	6W max.
Input:	100--240V AC 47-63Hz
Output Voltage:	12-24V
Output Current:	0.1-0.45A
Input current:	0.45A max.
Inrush Current:	20 Amps max. at 230VAC/50Hz,full load
Leakage Current:	0.25mA Max. at 264VAC input
No Load Power Consumption :	<0.075W
Protections:	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity:	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:	EU,US,UK,AU etc. type according to customer's choice
Certificates and approvals:	CE,EMC,RoHS,REACH
EMI EMISSION:	Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3
EMS IMMUNITY:	ESDTest:EN 61000-4-2 RSTest:EN 61000-4-3 EFTTest:EN 61000-4-4 Surge Test:EN 61000-4-5 CSTest:EN 61000-4-6 MFTest:EN 61000-4-8 DIPTest:EN 61000-4-11
MTBF:	100000 hours minimum at full load at 25 ambient
Life:	3-5 years alternative
Dimension:	64×36×23.4mm
Weight:	150g
Packing:	100PCS/CTN,45.5× 37×22mm

Details:

Model:	YSF5-1200450	YSF5-2400200
DC Voltage:	12V	24V
Rated Current:	450mA	200mA
Current Range:	0-0.45A	0-0.2A
Rated Power:	5.4W	4.8W
Ripple & Noise(max.):	120mVp-p	200mVp-p
Voltage Tolerance:	±5%	±5%
Line Regulation:	±3%	±3%
Load Regulation:	±5%	±5%
Setup,Rise,Hold up time:	3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.

MORE PRODUCTS

ABOUT YINGJIAO Yingjiao Electrical Co,Ltd. was established in 1995 and is dedicated to the designand development of all types of low voltage power adapters, LED drivers, utilizingscaled manufacturing and global sales to fully serve the world's electronic andelectric industries. The core products include switching & linear power adapters.battery chargers, transformers, LED drivers and completely customizable powersolutions, designed for use in telecommunications, IT equipment, consumerelectronic devices, security system, automation, medical equipments, smarthome, LED lights and much more.
Yingjiao owns independent high-frequency transformer and SMT workshops,along with 22 production lines for manufacturing & assembling, sell over 660million power supply products in the past years. Committed to total qualitymanagement through continuing improvement processes, including derating &reliability analytics testing, MTBF procedures are an integral part of our researchand development, with quality assurance management in support of ISO9001quality systems ensure that Yingjiao consistently offers the highest qualityproducts for our customers.
Yingjiao products comply with RoHS, PAHS, REACH and WEEE standards, AchieveCoC V5 and DoE Vl of efficiency level, obtained and maintained FCCTUV-GS, CBCSA,PSE, RCM, KC,EAC,NOM,IRAM,CE,EMC and CCC safetycertificates.
In addition to our full line of products, Yingjiao offers complete 0EM / ODMproduct development to meet your individual requirements.
