Product Description
Product Description
1.Parameters:
Items
| Specifications
| Unit
|
Web Width
| 470*365mm
| mm
|
Max. printing area
| 454*345mm
| mm
|
Min.paper size
| 80*120mm
| mm
|
Paper weight
| 28~260g/sqm
| mm
|
Printing speed
| 2000~9000 sheets/hour
| g/m2
|
Printing Length
| 260-520
| mm
|
Printing speed
| 30-150(Subject to the length and quapty of the printing material, Max 70 m/min)
| times/min
|
Machine Power
| 48.2 for 6 color (5.7/color+14 for unwinding Rewinding)
| KW (three phase 380V) 50/60HZ
|
UV
| 72 (12KW/color ) for six color
| KW(three phase 380V)
|
Overall dimensions
| 15200*3900*1900(L*W*H) 6 colors
| mm
|
Machine weight
| 24000 for 6colors
| kg
|
2.Description:

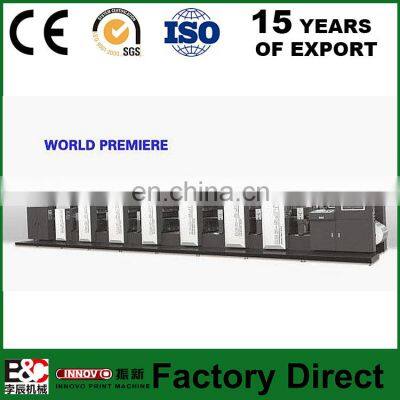

The machine consists of unwinding and rewinding with pneumatic shaft, printing units, CCD camera, touch screen, second pass, web-guide, auto-ink adjustment, Yaskawa or Panasonic servo motor, automatic oil supply, automatic plate mounting and adjustment- using 0.15 mm plate.
3.Company strength:
1.15 years factory experience
2.10 years export experience
3.Over one hundred professional factory workers
4.100% quality guarantee,supply all kinds of certificates
5.Good after-sales serive,we send engineers to repair machine overseas.
6.Primary products:
Automatic High Speed Flute Laminater
ZXSCM Book Case Making Machine
650UV Coating Machine
ZX-650C Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc
7.Following is our factory pictures:
4.Certificate:
5.Trade show:
6.Packaging & Loading:
Welcome to visit our factory!
>>
