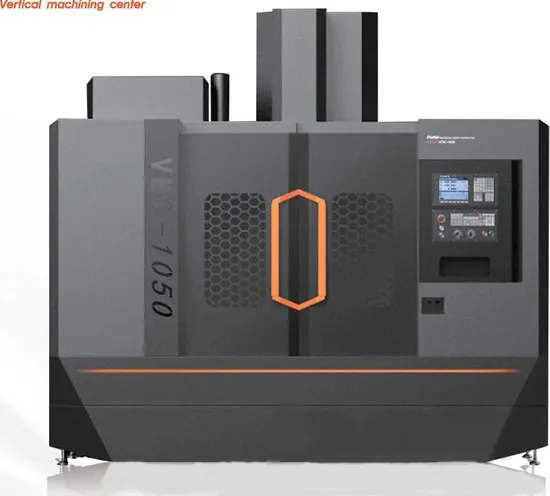

Vertical Machining Center CNC Machine

Product Description

Product Description
Application of machine:
VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
Feature
• High quality resin sand
• Taiwan spindle
• Taiwan ball screw and locking nut
• Taiwan pressure cylinder
• Japan NSK bearing
• Germany R+W coupling
• Automatic lubrication system
• Chip conveyor at optional
Product Parameters

	Specifications		VMC650	VMC855	VMC960	VMC1050
	Table size	mm	900X400	1000X550	1000X600	1000X530
	Table maximum load	kg	350	500	650	600
	X/V/Z axis travel	mm	650x400x500	800X550X550	900X600X600	1000X500X600
	Distance between spindle center and column	mm	476	590	662	580
	Distance between spindle end fece and worktable surface	mm	100-600	120-670	140-740	140-740
	X/Y/Z Max. feed speed	mm/min	10000	10000	10000	10000
	X/^7Z Max. Rapid traverse	m/min	32/32/30	32/32/30	32/32/30	32/32/24
	spindle speed	r/min	8000	8000	8000	8000
	spindle taper	type	BT40	BT40	BT40	BT40
	Spindle motor power	kW	5.5/7.5	7.5/11	7.5/11	7.5/11
	X/V7Z axis servo motor power	kW	2.6/2.6/2.8	3.9/3.9/3.6	2.8/2.8/3.8	3.9/3.9/3.6
	motor connection
	MfL Guide way type
	Tslot	mm	3-18X125	5-18X90	5-18X120	5-18X90
	Repeat positioning accuracy	mm	±0.004	±0.004	±0.003	±0.004
	Tool magazine		/
	Tool capacity		16T/16T	24T	24T	24T
	Maximum tool weight	kg	7	8	8	8
	Max. tool length	mm	250/300	300	250/300	250/300
	Electric capacity	kVA	10	15	18	15
	Machine dimension(LxWxH)	mm	2300X2000X2300	2600X2380X2700	2700X2350X2800	3200X2420X2400
	Net. weight (about)	kg	4500	5000	5500	6000

Detailed Photos
Processing case

---
