US$13,000.00-18,000.00
|
2 Pieces
(MOQ)
|
Basic Info.
Application
Rice, Corn, Wheat, Soybean, Straw, Paddy
Drive Type
Hydraulic Transmission
Portable Harvester Type
Self-Propelled Rubber Track Full Feed
Certification
ISO9001:2008
Application Field
Agriculture
Rated Power
61 / 75 / 88 HP
Cutting Width
2000 mm (2200 mm Optional)
Fuel Consumption
18-28 Kg/Ha
Min Ground Clearance
310 mm
Transport Package
Complete in Container
Specification
4680mm*2300mm*2650mm
Production Capacity
10000 Pieces/Year
Product Description
Product Description

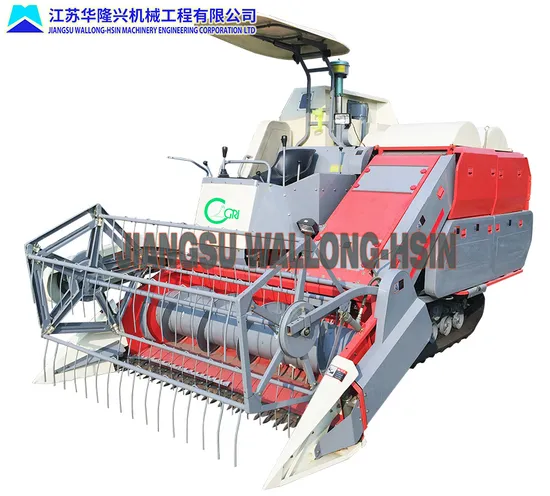

CA-2000B is new generation of full-feed combine harvester with the characteristics of comfortable driving, low noise, high reliability, excellent operating performance, and strong paddy field passing ability.
The threshing system is Dual Spiked Tooth Tangential Flow. The combine harvester is mainly used for the harvesting of rice and wheat.
The horse power of diesel engine: 61hp / 75hp / 88hp; cutting width: 2000mm / 2200mm; Hydrostatic Transmission(HST); The width of rubber track: 400mm / 450mm / 500mm; Standard hydraulic discharging pipe.
Detailed Photos
Product Parameters
| Model | CAG-2000B |
| Type | Self-propelled Full-Feed Crawler |
| Engine | Type | Water-cooled, 4stroke, Turbocharged Vertical Diesel |
| Rated Power (hp) | 55 / 61 / 75 |
| Rated RPM (r/m) | 2400 |
| Dimensions | Overall Length (mm) | 4680 |
| Overall Width (mm) | 2300 |
| Overall Height (mm) | 2605 |
| Transmission Type | Third Gear Transmission+HST |
| HST Displacement (ml/r) | 37 |
| Operation Weight (kg) | 2400 |
| Rubber Track (Picth x Number of Pitch x Width) | 90 x 49 x 450 |
| Track Gauge (mm) | 1150 |
| Cutting Width (mm) | 2000 |
| Feed Capacity (t/h) | 7.2 |
| Min. Gound Clearance (mm) | 310 |
| Fuel Consumption (kg/ha) | 18-28 |
| Pickup Reel | Type | Eccentric Reel Teeth |
| Diameter (mm) | 900 |
| Height Adjustment | Hydraulic |
| Threshing Cylinder | Type | Dual Spike-tooth type |
| Cylinder No. | 2 |
| DiameterxLength (mm) | F540x1285, F540x650 |
| Cleaning | Fan(front blowing+rear suction) |
| Brake | Wet Friction Discs |
| Discharging Type | Standard Discharging Pipe/
Manually Grain Collection |
| Grain Tank Capacity (kg) | 800 |
| Working Efficiency (ha/h) | 0.25-0.48 |
