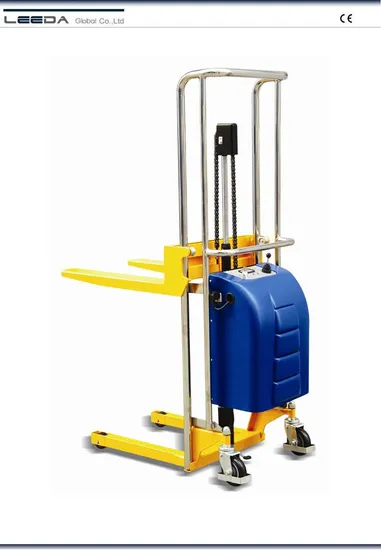

Electric Fork Stacker (HL-EF SERIES)

Product Description

Electric Fork Stacker (HL-EF SERIES)
1.Low profile forks can lift the pallet easily.
2.Easier and faster lifting operation.
3.High quality hydraulic motor
4.Service free battery
5.Noise-free castor as option
6.Option platform available
7.Adjustable Fork is available
8.Long Service Lift. Robust construction/Hard chromium plated frame
9.Effortless Movement.
Conforms to EN1757

Model			HL-EF2085	HL-EF2120	HL-EF4085	HL-EF4120	HL-EF4150
Capacity		KG	200		400
Max. Fork Height		MM	850	1200	850	1200	1500
Min. Fork Height		MM	80
Fork Length		MM	600		650
Fork Width		MM	500		550
Single Fork Width		MM	100		110
Overall Length		MM	1020		1100
Overall Width		MM	560		590
Overall Height		MM	1080	1435	1060	1410	1710
Load Roller		MM	Dia.75		Dia.75
Steering Rollers		MM	Dia.125		Dia.125
Power Unit		KW	0.8	0.8	0.8	0.8	0.8
Battery		Ah/V	60Ah/12V	60Ah/12V	60Ah/12V	60Ah/12V	60Ah/12V
Net Weight		KG	90	97	105	116	122
