Double Piston Continuous Screen Changer with Large Capacity for Plastic Extrusion Machine

US$4,000.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
GM-DP-L series
Applicable
Almost All Kind of Polymers
Size
Various Size to Be ,Atched with Extruders
Matreial
High Quality Alloy Steel
Transport Package
Seaworthy Packaging
Specification
CE, SGS
Trademark
Gmach
Origin
Zhengzhou
Production Capacity
200 Sets/Year

Product Description

Double piston continuous screen changer with large capacity for plastic extrusion machine
Benifits
1,Leak-free mold
2, continuous type means no shut-down the working machine when changing the screen
3, large screen area meets the customer high yield device.
4, delay the screen change interval, reduce the labor intensity.
Features of this kind of screen changer
Compared with the traditional double piston continuous screen changer, the filter screen area of this kind of screen changer is far lager .
the filter screen does not carried by the breaker plate, but wrapped on the slide bar which is full of holes, you can see the pictures as follows.

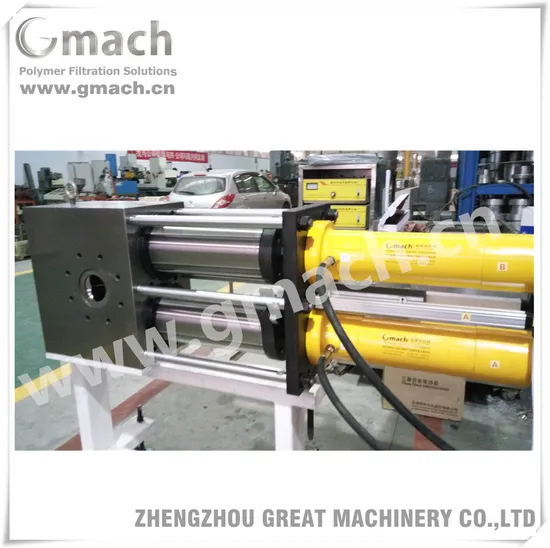

The pictures of this kind of products
Appliation fields
cast film (Bubble pack\ Medical\Food Wrap)
Sheet (Foam\Strapping\Plastic cardboard)
Coating (Hot melt adhesive)
Pipe (Corrugated\Gas Pipe) and profile
Compounding (Master Batch\filler)
Wire and cable extrusion
Tubing (Medical\ Industrial\Irrigation)
Fibers (Monofilament)
Pelletizing (strands and underwater)
Recycling of most polymers
Packaging
The inner packing : bubble wrap film
The outer packing :standard wooden case

Quality inspection
We take only first-class steel and check every production procedure to ensure every dimension is produced precisely. A final complete inspection will be executed before delivery.
Technical data

Type

Screen D&A
(mm)
overall dimension

Heating power
(KW))

Output
(kg/h)
(mm) (CM²) L W H L1
GM-DP-L-100 251x80 200x2 220 200 320 810 3.5/4.7 450-1200
GM-DP-L-120 314x100 314x2 250 220 360 970 5.0/7.2 800-1800
GM-DP-L-155 408x130 530x2 320 270 450 1100 8.2/11.1 1000-2600
GM-DP-L-175 471x180 846x2 370 310 480 1320 9.4/12.7 2300-4400
GM-DP-L-195 533x190 1012x2 400 380 550 1470 10.2/13.8 2900-6000
GM-DP-L-220 596x200 1192x2 440 410 590 1620 13/17.5 3900-10000
:,.
Note: The specifications are subject to change without prior notice.
