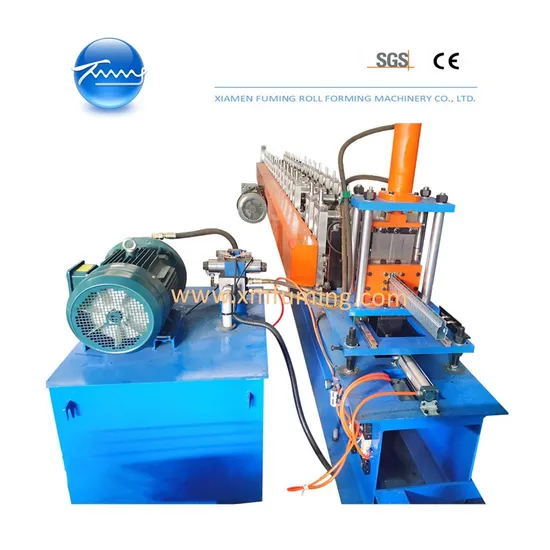

| ROLL FORMING MACHINE FOR UPRIGHT PROFILE |
|
| Material Specification |
| Thickness | 2.6mm/2.8mm/3.0mm/3.2mm |
| Size | YX105/125/145 |
| Material | GI, hot rolled steel |
| Yield strength | 550MPa |
| |
| Machine Components |
| 5Ton*600mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 451mm-530mm |
| Coil width | Max.600mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| |
| Pre-leveler and Power Feed-in Device |
| Power Feed-in Rollers | |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set | |
| |
| Hydraulic Pre-shearing Device |
| Function | Smart cut control, to cut off the end of the final piece of sheet |
| Mateiral of cutting tool | Cr12, heat treatment |
| |
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 28 stations |
| Roller material | Cr12, heat treatment |
| Shafts Diameter | Φ95mm |
| Motor to drive | 18.5KW×2 |
| Size changing | By spacer |
| Production speed | Approx. 12m/min |
| |
| Hydraulic Non-Stop Cutting device |
| Cutting type | Non-stop cut, no blanking cut |
| Unloading and cutting carriage reset | Driving by pneumatic cylinder |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 11KW |
| |
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1mm |
| Punching tolerance | ≤±1 mm |
| Control Voltage | 24V |
| |
| Pneumatic Unloading Rack | Un-powered, 12 meters |
|
