Wellon CNC Vertical Machining Center/CNC Milling Machine Vmc850 Vmc855 Vmc1160

Product Description

Product Description
More Choices

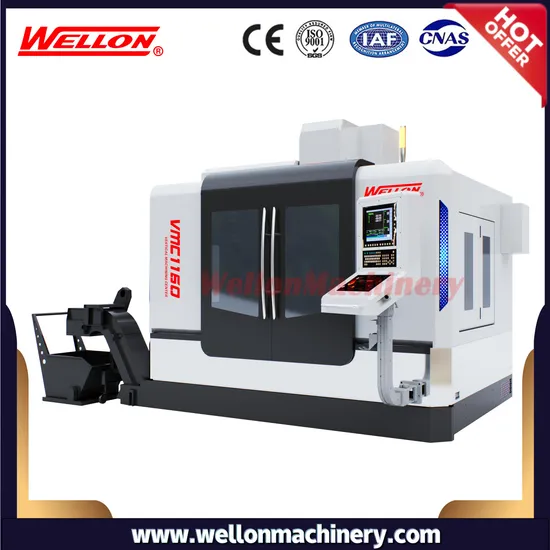

Wellon CNC Vertical Machining Center/CNC Milling Machine VMC850 VMC855 VMC1160

Detailed Photos

Product Parameters

Main configuration & accessories:
1. Resin sand casting;
2. X, Y, Z rails adopt stainless steel telescopic cover;
3. Taiwan production pneumatic cylinder;
4. Taiwan ATC, carousel type and disc type are available as option;
5. Headstock balancing system have heavy casting or nitrogen balance system as option;
6. Full enclosed cover;
7. Rigid tapping;
8. Work lamp;
9. USB and Internet interface;
10. Manual pulse generator (MPG);
11. Centralized automatic lubrication system.
12. Cooling system.
13. Heat exchanger for electrical cabinet ;
14. Leveling blocks & bolts;
15. Toolbox and tools;
Technical Parameter:

Model	Unit	VMC1160
Table size	mm	1200*600
X axis travel	mm	1100
Y axis travel	mm	600
Z axis travel	mm	600
Max. table load	kg	800
T slot qty-width*distance	mm	5-18*100
Max.spindle speed	rpm	8000
Spindle nose to table surface	mm	120-720
Spindle axis to column surface	mm	670
Max. diameter of drilling	mm	40
Max. Threading		M20
Spindle taper		BT40
Main motor power	kw	11
Feeding rate	mm/min	0-10000
X/Y/Z axis motor power	kw	3/3/4.5
X/Y/Z axis rapid feed	m/min	36/36/32
Tool changer type		Disc type
Tools capacity		24
Tool change time		1.8 sec
Max. tool length	mm	150
Max. Tool diameter		Φ100
Max.tool(kinfe) weight	kg	3
Positioning accuracy X/Z	mm	±0.008
Repeat positioning accuracy X/Z	mm	±0.005
Net Weight	kg	7500
Overall Dimension	mm	2980*2450*2800

Standard accessories:
Mitsubishi M80 control system
Taiwan Spindle: 8000rpm
X/Y/Z axes: Mitsubishi servo drive motor
Main motor: Mitsubishi spindle motor
24 tools disc type magazine
USB+Ethernet interface
Rough cutting of thread
Full closed cover
Automatic lubrication
Coolant system
Work lamp
Tri-color indication lamp
Air gun
Water gun
Heat exchanger in cabinet
3-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from taiwan Hiwin
Company Profile

Packaging & Shipping

FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
