Semi Auto Blow Job Machine for Small Plastic Bottle
Product Description
Specifications

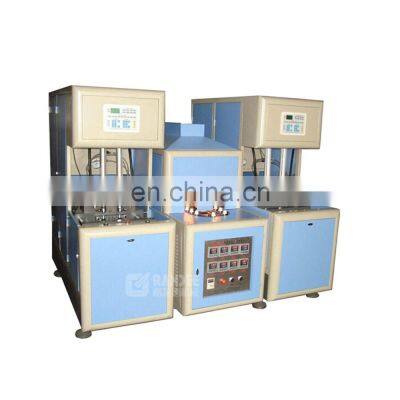

GD-880-II Semi-automatic water bottle blowing machine
CE approval
Speed: 1500pcs/h for 500ml pet bottle
Volume:220-2000mL
Brief introduction of water bottle blow molding machine
Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.01-25L. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment, easy and safe to operate .
Main machine :
2 Cavity bottle blowing mold
Heating lamp in the heating oven
Operation panel
Bottle Preform Preheating datas setup interface
Finished Bottle
Main technical parameter:
TYPE
| ITEM
| UNIT
| GD-880 semi automatic blow molding machine
|
Container
| Product material
| /
| PET
|
Number of cavities
| L
| 2 cavity
|
Theoretic output
| BPH
| 1500BPH
|
Max bottle height
| mm
| 450
|
Max bottle diameter
| mm
| 35-220
|
Molding
| Clamping force
| T
| 20
|
Clamping stroke
| mm
| 230
|
Max. stretching stroke
| mm
| 380
|
Max. mould thickness
| mm
| 300
|
Auxiliary system
| High air compressor
|
|
1.2m³/30KG
|
Air dryer
|
| 1.0m³/30KG
|
Air filter
|
| 2.0m³/30KG
|
Main machine electricity
| Voltage standard
| V / Hz
| 380v/3PH/50Hz or special order
|
Total power
| KW
| 6
|
Machine size and weight
| machine weight
| T
| 0.82
|
Blow molding machine Dimension
| cm
| 148*60*213
|
Perform oven
| cm
| 137*61*134
|
Related product
| RO System
This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.
This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.
|
Blowing Machine with different options
1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities.
2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.
| |
| | Automatic PVC sleeve labeling machine
Capacity: 100-350bottles/min can be chosen
Label material: PVC PET OPS, etc
Bottle material: PET PE PP Glass
Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm
Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max)
|
|
Automatic pet film shrink packing machine
Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling
Speed: 8-12packages/min
Power (rated/real): 26kw / 16kw
Max. packing size: 420*300*350mm(LxWxH)
Max. sealing size: 650mm
|
Company Information
Our Services
Customer's service:
1.Grandee company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. Grandee company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3. Grandee company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle
material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance
service.
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
