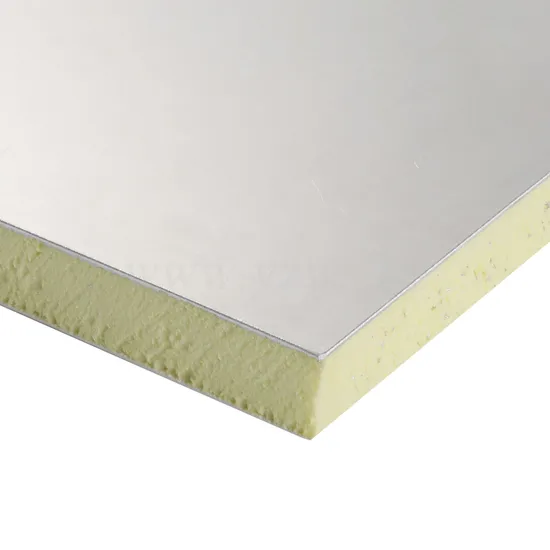

Gelcoated FRP XPS Foam Sandwich Panel for Trailer Van Body

Product Description

FRP machining sheet
UV and Yellowness resistant,Aging resistant
perfect quality,reasonable price
Over 20 year production experience
WS FRP panels including FRP pebbled sheets is of the following features:

FRP machining sheet UV and Yellowness resistant,Aging resistant perfect quality,reasonable price Over 20 year production experience WS FRP panels including FRP pebbled sheets is of the following features: Width: ≤3.2m Thickness: 1.0-3.0mm Length: freewill(also rolling package) Surface: smooth or embossed Color: all kinds of colors (RAL) Excellent bonding characteristics Available in various specifications Moisture resistance Easy to clean and install Solid ,yellowness and aging resistant corrosion resistance optimum strength Excellent UV / weathering protection superior physical chemical properties Applications:sandwich panels, refrigerator car,decorative sheets, truck box body, wagon panels, dry van sheets, container panels, trailer panels, outdoor vacation panels, food processing plants, cold storage, brewing beer plants, pharmaceutical factories, laboratories, hospitals, chemical plants, public bathhouses, toilets, warehouses, supermarkets, pleasure ground, schools, car washing, and yachts . Suitable for versatile indoor applications and without varnishing also for outdoor use. Fiberglass Flat Sheet WS enables a huge selection of FRP sheet in various thickness and widths to a maximum length of 200 linear meters. All FRP sheet can be high gloss, matte, in Ral colors and comes supplied with a removable clear plastic film to protect the outer face. The inside face can be sanded to aid bonding and give a uniform thickness throughout the width of 200 linear meters in any width up to and including 2.5 meters. Main component: polyester resin, well-balanced glass content, gelcoat layer Quality assured by: continuous manufacturing process and constant process control. Data to name a few: Specifications units Cited Thickness 1.0mm 1.5mm 2.0mm 2.5mm 3.0mm Weight Kg/m2 1.3 2 2.6 3.2 4.0 Glass content % 19 25 29 30 30 Tensile strength Mpa 60 80 92 95 97 Elongation at break % 1.5 1.5 1.5 1.5 1.5 Elastic modulus Gpa 5.5 7 7.3 7.6 7.8 Izod impact strength KJ/m2 45 55 70 80 95 Please note: that glass sheet is supplied in coils at maximum length of 200 linear meters. However, Depending on quantity required it is possible to order sheet in flat packs cut to size. Yangzhou Wansheng Industry Co., Ltd. is a professional manufacturer of fiberglass sheets, FRP decorative panels, serving building industry and RV industry, commercial trucks and bodies, and equipment facilities, such as Incubators, solar plants, etc. All of these products are exported to the USA,Canada,Australia,the Middle East, Africa etc.

Applications:sandwich panels, refrigerator car,decorative sheets, truck box body, wagon panels, dry van sheets, container panels, trailer panels, outdoor vacation panels, food processing plants, cold storage, brewing beer plants, pharmaceutical factories, laboratories, hospitals, chemical plants, public bathhouses, toilets, warehouses, supermarkets, pleasure ground, schools, car washing, and yachts . Suitable for versatile indoor applications and without varnishing also for outdoor use. Fiberglass Flat Sheet WS enables a huge selection of FRP sheet in various thickness and widths to a maximum length of 200 linear meters. All FRP sheet can be high gloss, matte, in Ral colors and comes supplied with a removable clear plastic film to protect the outer face. The inside face can be sanded to aid bonding and give a uniform thickness throughout the width of 200 linear meters in any width up to and including 2.5 meters. Main component: polyester resin, well-balanced glass content, gelcoat layer Quality assured by: continuous manufacturing process and constant process control. Data to name a few:

Specifications	units	Cited Thickness
		1.0mm	1.5mm	2.0mm	2.5mm	3.0mm
Weight	Kg/m2	1.3	2	2.6	3.2	4.0
Glass content	%	19	25	29	30	30
Tensile strength	Mpa	60	80	92	95	97
Elongation at break	%	1.5	1.5	1.5	1.5	1.5
Elastic modulus	Gpa	5.5	7	7.3	7.6	7.8
Izod impact strength	KJ/m2	45	55	70	80	95

Please note: that glass sheet is supplied in coils at maximum length of 200 linear meters. However, Depending on quantity required it is possible to order sheet in flat packs cut to size. Yangzhou Wansheng Industry Co., Ltd. is a professional manufacturer of fiberglass sheets, FRP decorative panels, serving building industry and RV industry, commercial trucks and bodies, and equipment facilities, such as Incubators, solar plants, etc. All of these products are exported to the USA,Canada,Australia,the Middle East, Africa etc.

---
