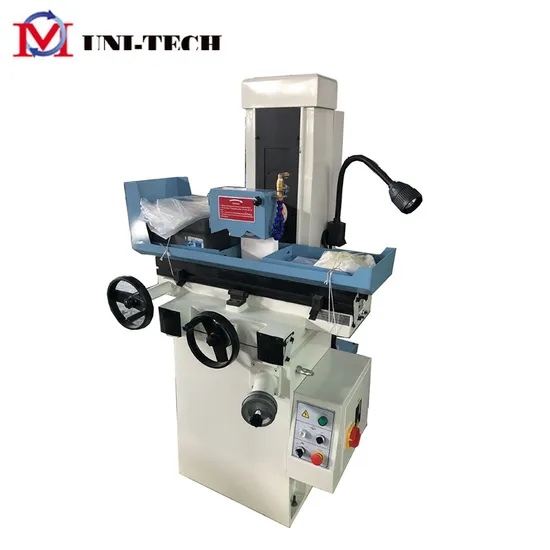

Manual Metal Precision Flat Table Moving Surface Grinding Machine

US$2,058.00 3 Pieces (MOQ)

Basic Info.

Model NO.

M618A

Type

Surface Grinding Machine

Processing Object

Metal Surface

Abrasives

Grinding Wheel

Controlling Mode

Artificial

Automatic Grade

Semiautomatic

Cylindrical Grinder Type

Surface Grinder

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Name

Metal Manual Surface Grinding Machine

Table Size

460X180mm

Table Travel

500X190mm

Max.Distance From Spindle to Table

335mm

Table Slide Way

V-Type

Number of T-Slot

1X14

Wheel Speed

2850rpm

Wheel Size

180*13

Spindle Motor

1.1kw

Coolant Pump

0.4kw

Overall Size

1550X1150X1590mm

Transport Package

Wood Case

Specification

CE, ISO9001

Trademark

UNI-TECH

Origin

Shandong, China

HS Code

84601900

Production Capacity

100sets/Month

Product Description

manual metal Precision Flat table moving Surface Grinding Machine
Main features:
1.Quality castings and Precision ball bearing supporting the spindle
2.Coolant system with nozzle and flow control valve
3.Cast iron machine body and stand for maximum rigidity and smooth operation
4.The machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.The machine is suitable for grinding without auto feed and is installed with permanent magnetic chuck or electromagnetic chuck according to customer's requirement.
5.Vertical dial graduations 0.01mm
6.Cross travel graduations 0.02mm
7.Manual one shot lubrication pump
8.Wheel balancing stand and arbor
9.Halogen work light

Model				M618A	M820
Working table	Table Size (L× W)		mm	460×180	480x200
	Max movement of working table(L× W)		mm	500×190	530x220
	T -Slot number×width		mm	1×14	1×14
Grinding head	Max distance from spindle center to table surface		mm	335	450
	Wheel Size(Outer diameter×width×Inner diameter)		mm	φ180×13×Φ31.75	φ200×20×Φ31.75
	Wheel speed	50HZ	r/min	2850	2850
Table slide -way			/	V-type rail with steel-ball	V-type rail with steel-ball
Feed amount	Vertical feed on handwheel	Per revolution	mm	1.25	1.25
	Vertical feed on handwheel	Per graduation	mm	0.01	0.01
	Cross feed on handwheel	Per revolution	mm	2.5	2.5
	Cross feed on handwheel	Per graduation	mm	0.02	0.02
Motor power	Spindle motor		kw	1.1	1.1
Motor power	Coolant pump motor		kw	0.4	0.4
Weight	Net		kg	650	700
Weight	Gross		kg	750	800
Overall dimension(L×W×H)			mm	1550x1150x1590	1680x1140x1760
Package dimension(L×W×H)			mm	1000x1150x1760	1140x1250x1940

Standard accessories:
Tool box
Balancing stand balancing bar
Flange wrench
Screwdriver
Balancing screw
Open-end wrench
Inner hexagon spnner
Wheel dresser holder
Wheel dresser
Machine flange
Wheel flange
Chuck
Optional accessories:
1. Tilting permanent chuck
2. Demagnetizer
