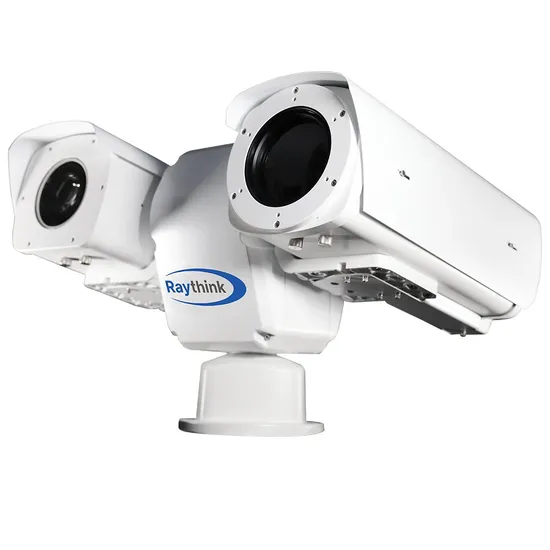

Dual-Spectrum PTZ Forest Fire Prevention Border Security Thermal/Visible Light Imaging Camera

Product Description

Product Description
PC6 series is a long-range surveillance solution that integrates HD visible light, cooled/uncooled infrared thermal imaging, large focal-length thermal lens and a high-peformance PTZ system, with intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection inside. It provides all-weather, 24/7 surveillance for scenarios such as perimeter surveillance, forest fire prevention and critical area protection. Product Highlights
• 12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
• Dual-Spectrum ImagingSupports a maximum thermal imaging resolution of 1.3 megapixels (1280×1024).
Supports a maximum visible light resolution of 4 megapixels (2688×1520)
• Long-Range DetectionSupports 75mm and 100mm fixed-focus, as well as 25~75mm continuous zoom infrared lens to meet long-range detection needs.
• Platform IntegrationSupport ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.
• Intelligent Fire Detection AlgorithmFeatures an integrated intelligent fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.
• Intelligent Video AnalysisSupport tripwire/intrusion detection, as well as intelligent detection of fire point.
Specifications

Technical Specifications	PC664A1
Thermal Module
Detector Type	VOx, uncooled FPA detector
Spectral Range	8~14μm
NETD	≤40mK(@25°C,F#1.0,25Hz)
Resolution	640×512
Pixel Pitch	12μm
Focal Length	30~150mm/25~225mm
Optical Module
Sensor	1/1.8" 4-megapixel CMOS image sensor
Focal Length	15-775mm
Resolution	2688×1520
PTZ
Pan	360° continuous, 0.01°~100°/s
Tilt	-90°~+90°,0.01°~60°/s
Scan Mode	Preset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama Scan
Smart Function
Smoke & Fire Detection (Visible)	Support
VCA	Support Line crossing&Intrusion detection
Linkage Action	Video/ Snapshot/Email/Alarm output
System Interface
Power	DC 48V±15%
Network	1×RJ45 10M/100M self-adaptive interface
Audio Input	1×input
Audio Output	1×output
Alarm Input	7×input
Alarm Output	1×output
Storage Interface	Micro SD card (up to 256G)
RS485 Interface	1×RS485
General
Work Environment	-40ºC~+70ºC;<90%RH
Protection	IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power Consumption	200W
Dimensions (mm)	746* 748* 437
Weight	42kg

Application Scenarios
Perimeter Surveillance Forest Fire Prevention
Urban High-Altitude Observation Critical Infrastructure Protection Company Information
FAQ
Q1: How can we guarantee quality?
A: We have professional infrared detector chip manufacturing, rigid thermal camera manufacturing process, perfect quality management system, CNAS certification reliability test platform.Q2:How long is your delivery time?A: For smal order,it usually takes 7 working days. For OEM order, please check the shipping time with usQ3: What's the MOQ?A: MOQ is depend on the product.Q4: What's your payment terms?A: Our payment terms is L/C, T/T, D/P, Western Union, Paypal and Money Gram.Q5: What's the product warranty policy?A: Thermal vision products purchased from our company come with a 2-year warranty, while our thermal modules are covered by a 1-year warranty.Q6: How about aftersale support?A: We provide lifetime Technical Support, our engineer will respond your technical support within 24 hours.

---
