2W 2 Way Direct Acting 2/2 Normally Closed Nomal Open Waterproof Solenoid Pneumtaic Water Air Liquid Oil Brass Stainless Steel Small Big Orifice Control Valve

Product Description

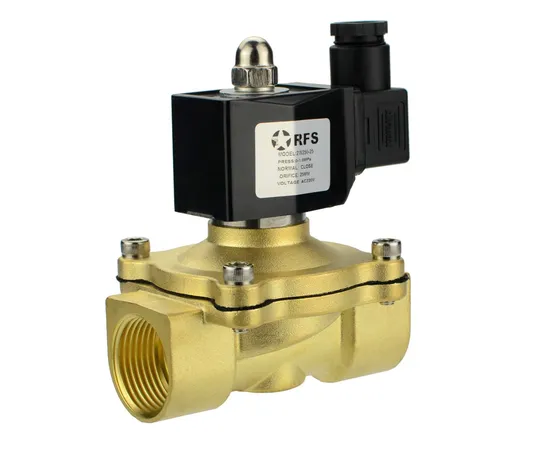

Waterproof Solenoid Valve (2W-160)
SpecialityDirect acting,diaphragm structure,can be work at zero pressure,expanding the using area.
Plate diaphragm structure,high reliability,long life;
Valve body can be made from brass and stainless steel;
Plastic encapsulating coil,be able to use under numerous environment;
Ordering code
Parameter

Model

Media

Working Type

Pattern

Orifice (mm)

CV Value

Connection Ports

Fluid Viscosity

Working Pressure (Mpa)

MAx Pressure (Mpa)

Working Temp (ºC)

Rated Voltage

Power

Valve Body Material

Seal Material

R2W160-10

Air Water Oil

Direct Action

Normally close

16

4.8

3/8''

<20CST

0-0.7

1.0

-5~80

DC12-24V AC24V-380V ±10%

DC23.4W AC26VA

Brass Stainless Steel

NBR EPDM VITON

R2W160-15

16

4.8

1/2''

R2W200-20

20

7.6

3/4''

R2W250-25

25

12

1''

R2W350-35

35

24

1 1/4''

R2W400-40

40

29

1 1/2''

DC40W AC50VA

R2W500-50

50

48

2''

Overall Dimension

Model	A	B	C	D	K
R2W160-10	97	57	110	66	G3/8
R2W160-15	97	57	110	66	G1/2
R2W200-20	106	57	115	70	G3/4
R2W250-25	106	73	122	99	G1
R2W350-35	136	90.5	167	124	G1-1/4
R2W400-40	136	90.5	167	124	G1-1/2
R2W500-50	151	124	186	164	G2

Company information
Xingyu Electron(Ningbo)Co.,Ltd. is one of the key enterprises in Chinese pneumatic and valve industry,We specialize in development,manufacturing, marketing and service of pneumatic actuator,angle seat valves,solenoid valves,solenoid coils and DIN connectors;
"Not to be the biggest,but to be the strongest" is our business goal and ideal,let us make best efforts for a better future.
Brief Introduction:
--Approx 30 years' experience in manufacturing solenoid coils;
--Started to make solenoid valves & pneumatic actuators since 2004;
--ISO 9001 and IATF16949 certificated company;
--Main products: pneumatic actuator, Angle seat valves, Solenoid valves, solenoid coils,
Digital pressure switch, Vacuum generator, E/P regulator;
--Application: Pneumatic & Hydraulic industries, fluid control system,
air and water treatment system, Automatic industry, etc;
FAQ
Q:Are you a trading company or a factory?
A: We are a factory, manufacturer solenoid coils since year 1990.
Q:After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty ?
A: Normally it is guaranteed for 12 months since dispatching from factory
Q: Can you customized the products?
A: Yes, we have professional R&D team, we supply customized products to customers

---
