SS304 Mixing Tank 200L Paint Mixer

Product Description

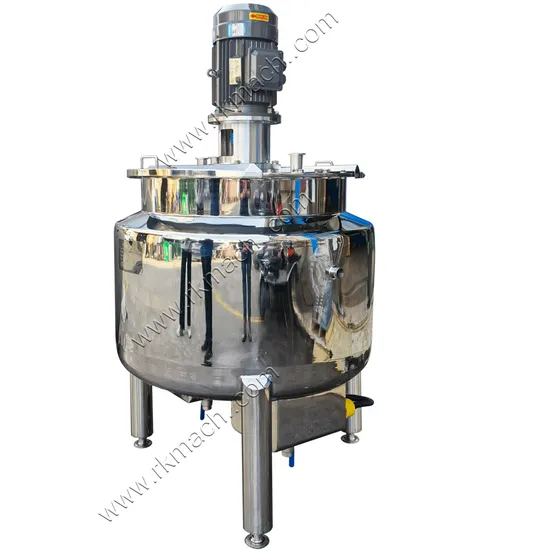

stainless steel mixing tank 200L for ink paint pigment dispersing
- made of SS304 / SS316L
- full capacity 220Ltrs
- inner wall mirror polish
- stainless steel oil jacket
- outer wall matt polish
- 960 / 1450 rpm mixing speed <customized>
- no mechnical seal being used in order to reduce daily maintenance
200Liter stainless steel heating mixing tank specification
200L and 300L heating tank specification

Capacity	200L	300L
FOB price	/	/
Material	SS304	SS304
Thickness of wall	3mm / 3mm / 2mm	3mm / 3mm / 2mm
Diameter	Φ800	Φ900
Height	1450mm	1650mm
Motor power	0.75 / 1.1KW	1.1 / 1.5KW
Mixing speed	36rpm	36rpm
Insulation thickness	50mm	50mm
Heating power	12~24KW	12~36KW
Heating medium	Water / steam / oil	Water / steam / oil
Cooling medium	Water	Water
Discharge pipe	DN38 (customized)	DN38 (customized)
Temperature range	30~110 degree C	30~110 degree C
Accessories:	Drainage valve Temperature gauge Oil inlet hopper Oil drainage valve	Drainage valve Temperature gauge Oil inlet hopper Oil drainage valve

200L heating mixing tank quality
We mainly focus on high quality goods with reasonable price. We do not know how to make low quality tank. Here are some pictures for your reference. as buyer, you will get several different quotation if you offer clear reqeust on the tanks. as supplier, we suggest you compare the prices, also, we suggest you compare the quality.
stainless steel heating mixing tank packing and package
For goods less than one full container, we usually use wooden package for the related tanks. For FCL goods, we usually use wrapping film to packing the tanks and then wrapping them by nylon material.
200L stainless steel mixing tank video
here is a short video of a 200L mixing tank, have a look please

https://youtu.be/i3BnyihR5vs

200L stainless steel mixing tank price
Mixing tanks are all produced based on a clear request for specific products. We all know that different product have different request on the tanks, such as mixing speed and tank material. For example, tanks for fresh milk usually use low speed mixing tank, 36rpm are common used speed, while 60 rpm may also being adopted when necessary. For washing liquid and cosmetic, the mixing speed may be 1500rpm or 2800rpm and the tank inner wall should be SS316L. it is not easy to offer a correct price for all 200L tanks. Thus, the price you see here in this web may not the final price for you. For an accurate price of this 200L tank, please get in touch with our on-line service team.
