Log Cutting Machine Circular Blade Double Arbor Multi Gang Rip Saw

Product Description

Product Parameters
New and Used
Log cutting Double Arbor Multi Ripsaw

Model	150	200	240	285	330	340	400	430	480
Cut Diameter MM	20-150	60-200	80-240	130-285	150-330	150-340	180-400	200-430	250-480
Saw Diameter MM	255	305	355	405	455	480	550	600	650
Motor Power KW	18.5*2	22*2	30*2	30/37	37*2	45/55	55*2	55/75	75*2
Weight KG	1570	1720	2200	2350	2550	2650	3500	3880	4100

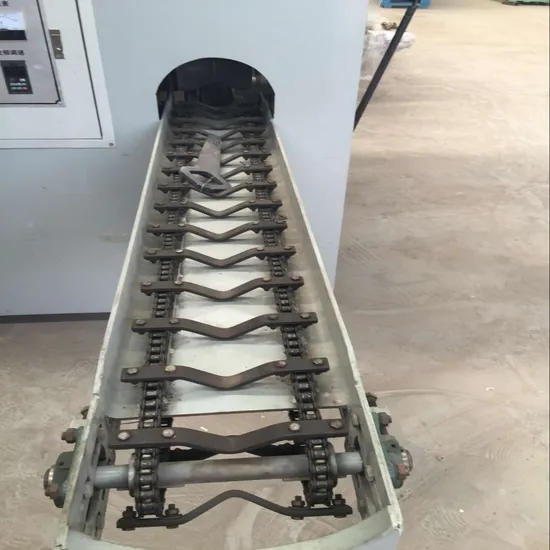

Detailed Photos

Related Machines

Timber cutting Double Arbor Multi Ripsaw

Model	60	100	150	100	120	200	250	270	300
Cut Height MM	0-60	40-100	60-150	40-100	50-120	90-200	110-250	130-270	150-290
Cut Width MM	250-300	250-300	250-300	350-400	350-400	350-400	350-400	350-400	350-400
Saw Diameter MM	150	210	255	230	255	355	380	405	455
Motor Power KW	18.5/22	22*2	22/30	30*2	37*2	37/45	45*2	45/55	55*2
Weight KG	1190	1420	1620	2330	2450	2550	2580	2620	2700

Slab Cutting Saw

Model	B250	B300	BH250	BH300
Max Cutting Height MM	40-100	40-150	100-150	100-150
Max Cutting Width MM	250	280	250	300
Saw Blade Diameter MM	355	405	405	455
Motor Power KW	7.5*2	11*2	15*2	18.5*2
Weight KG	600	750	1380	1420

Single Arbor Multi Ripsaw With Laser Positioning

Model	300-500	50-500	50-800
Max Sawing Wood Thickness MM	30	50	50
Max Sawing Wood Width MM	500	500	800
Saw Blade Diameter MM	160	210	210
Feeding Model	Belt	Belt	Belt
Motor Power KW	7.5	11	15
Length*Width*Height MM	1320*850*1350	1350*850*1350	1350*950*1350
Weight KG	400	510	730

Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our Circular Sawmill including
Multi Ripsaw (Double Arbor/Single Arbor,Log/Boards Cutting)
Trimmer (2/3/4/5 Heads)
Circular Sawmill With Wood Carriage (1/2/4 Blades)
Twin Blades Edger
Double Blades Angle Sawmill
Swing Blade Sawmill
Industrial Table Sawmill
Cross Cutting Sawmill

Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!

---
