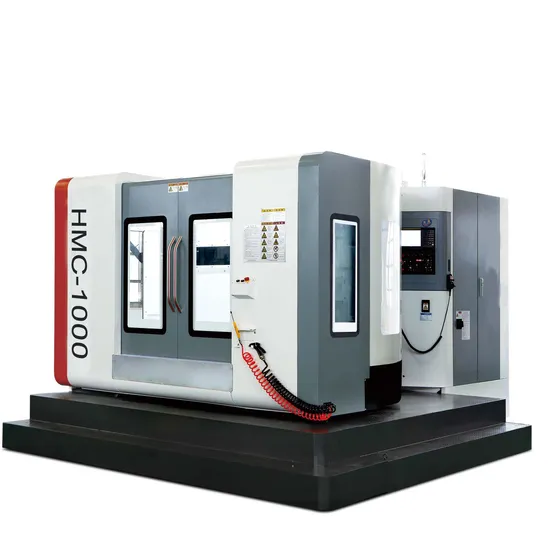

Advanced CNC Horizontal Milling Center Hmc1000 for Medical Equipment Fabrication

Product Description

Product Description
Horizontal machining centers are widely used in the processing of high-precision parts, especially suitable for the processing of IT components, auto parts, optical instruments, medical equipment, pneumatic components, aviation and aerospace parts, molds, etc. This machine tool is mainly used for milling, and is suitable for drilling, tapping, reaming, reaming, boring and continuous milling of parts.
Product Parameters

Item	Unit	HMC-1000
Table size (L × W)	Mm	1000×1000
Table indexing	0	1°/0.001°
Number of tables	/	1
Table T-slots	mm	5*22*200
Table load capacity	Kg	2000
Maximum workpiece swing diameter	mm	1800
Table longitudinal travel (X-axis)	mm	1600
Spindle head vertical travel (Y-axis)	mm	1000
Table cross travel (Z-axis)	mm	1000
Distance from spindle end to table center	mm	200-1200
Distance from spindle centerline to table top	mm	120-1120
Spindle taper	type	BT50
Spindle motor power	kw	18.5/220Nm
Maximum spindle speed	r/min	6000
Rapid traverse speed (X, Y, Z)	m/min	24/24/24
Cutting feed rate (X, Y, Z)	mm/min	1-10000
Tool magazine capacity	T	40/60
Tool change time	s	2.6
Maximum tool weight	kg	25/35
Maximum tool diameter (full tool)	mm	Φ125×400(tool length)
Maximum tool diameter (empty tool)	mm	Φ250
Maximum rotary table speed	r/min	10
X, Y, Z positioning accuracy (full range)	mm	0.012
X, Y, Z repeatability (full range)	mm	0.008
B-axis positioning accuracy	mm	12"
B-axis repeatability	mm	7"
Dimensions (L × W × H)	mm	6200×5010×3800
Machine weight (approx.)	kg	18000

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
