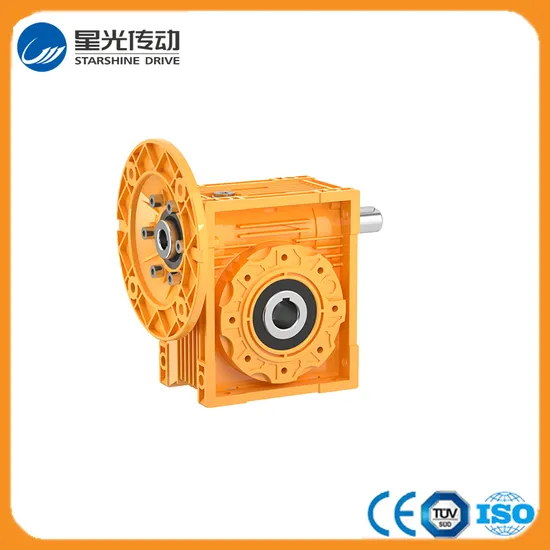

Right Angle Aluminum Body Worm Gearbox with Output Flange

Product Description

RV - Sizes:030-040-050-063-075-105-110-130-150 Input Options: with input shaft, With Square flange,With Input Flange Input Power 0.06 to 11 kW RV-Size from 030 to 105 in die-cast aluminium alloy budy and over 110 in cast iron Ratios between 5 and 100 Max torque 1550 N.m and admissible output radial loads max 8771 N Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity Worm wheel: Copper (KK Cu). Loading capacity in accordance with: ISO 9001:2015/GB/T 19001-2016 Size 030 and over are painted with RAL 5010 blue Worm gear reducers are available with diffferent combinations: NMRV+NMRV, NMRVpower+NMRV, JWB+NMRV NMRV, NRV+VS,NMRV+AS,NMRV+VS,NMRV+F Options: torque arm, output flange, viton oil seals, low/high temperature oil, filling/drain/breather/level plug.
Technical parameters

Type	Old Type	Output Torque	Output Shaft Dia.
SNW030	RV030	21N.m	φ14
SNW040	RV040	45N.m	φ19
SNW050	RV050	84N.m	φ25
SNW063	RV063	160N.m	φ25
SNW075	RV075	230N.m	φ28
SNW090	RV090	410N.m	φ35
SNW105	RV105	630N.m	φ42
SNW110	RV110	725N.m	φ42
SNW130	RV130	1050N.m	φ45
SNW150	RV150	1550N.m	φ50

About Starshine Drive
Guangdong Starshine Drive Co.,Ltd(Starshine) have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.
Our products are widely used in ceramic industry, glass industry, woodworking machinery , high voltage switch, food & beverage, packaging & printing, Storage & logistics, hoisting & transportation facilities…etc , and Starshine technically provide the professional product & service for the medium and high-end customers, and our gearboxes are best-selling in domestic, and even in abroad , such as in Europe, North America, South America, Middle East, South Asia, Southeast Asia, Africa…etc.
In the future , Starshine will hold the creed of "serving customer, diligence & simplicity, self-criticism, innovation, honesty, teamwork", and the concept of "quality creates value" to focus on the customers' requirements and provide them the competitive transmission solution and create value for them constantly, and make a high-end equipment manufacturing industry and create a preferred brand of replacing import products and upgrading continuously for the end users.
Team
Quality Control
Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value
3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective measures to prevent recurrence.
4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend; found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state
5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of customer expectations and needs.
6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the product is a product inspection to determine the qualified products.
