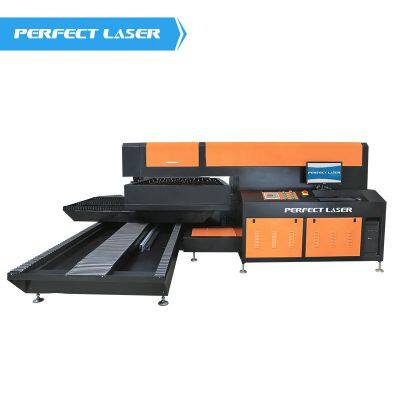

1200x1800mm Single Head 400W / 600W Laser Die Board Cutting Machine

Product Details

Product Description

Product Description
Features:
1. The body of our laser die board cutting machine is welded with square steel pipe with 1.7 tons weight, so it is durable and not easy to deform.
2. The spark is very small during operation and the laser die board cutting machine is configured with an exhaust fan to suck off the smoke.
3. The working precision of our laser die cutting equipment is 0.1mm, so the cutting error is small and the precision is high.
4. This laser die board cutting machine adopts arrow-shaped copper column working platform. Compared to the ordinary flat platforms, it can not only reduce the support resistance but also can reduce the blackening of the cutting surface because of the copper column’s better reflection effect of the laser.
5. The laser die board cutting machine adopts fixed optical path instead of the cutting head, the X-axis and Y-axis platform can move when cutting. The laser die board cutting equipment can cut through the wooden board at a time and the cutting slit is evenly straight.
Technical Data:

Product Name	Laser Die Board Cutting Machine
Model	PEC-1218P
Laser Tube	CO2 sealed glass tube × 3 pcs
Max. Output Power	400 Watts / 600Watts
Working Area	1200 × 1800mm
Cutting Speed	7-12mm/s
Cutting Thickness	20-23mm wooden die board 10-20mm acrylic sheet, 1-3mm carbon steel,Iron
Cutting Accuracy	0.1mm
Servo Motor	Chinese Top brand： Leadshine 1.5KW × 2pcs
Knife Slit	0.45mm/0.71mm/1.07mm(adjustable)
Cooling Method	Water cooling
Focus Mode	Auto focus adjustment
Screw Guide	Taiwan TPI
Chill Power	1.3KW
Exhaust Fan Power	1.1KW
Machine Power	10KW
Power Supply	220V
Floor Space	4500 × 4500mm
Support Image Format	DST,AI,PLT
Warranty	12 months for whole die board laser cutting machine, 10 months for laser tube

---
