| US$18.00-45.00 | 100 kg (MOQ) |
| Category | Process | Outer Diameter | Wall Thickness | Length | Grades |

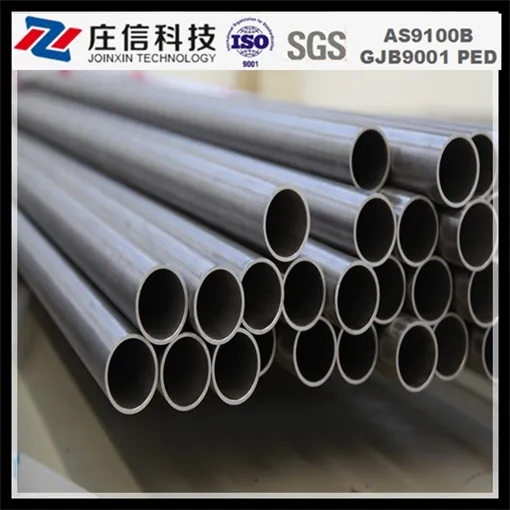

| Titanium Seamless Tube /Pipe | Hot Extruded | 25-210mm | 4-30mm | Customized | Gr1 Gr2 Gr3 Gr5 Gr7 Gr9 Gr11 Gr12 |
| Cold-rolled | 1.5-80mm | 0.2-5.5mm | Customized | ||
| Titanium Welded Tube/Pipe | Welded | 10-38mm | 0.5-2.1mm | Customized |
| Chemical Composition | Visual Inspect | Ultrasonic Testing | Current Testing |
| Flattening Testing | Flattening Testing | Pneumatic Test | Hydrostatic Test |
| Tensile | Yield | Hardness | Elongation |
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | Bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 | Bal |
| Grade | Elongation(%) | Tensile Strength (Min) | Yield Strength (Min) | ||
| ksi | Mpa | ksi | Mpa | ||
| Gr1 | 24 | 35 | 240 | 20 | 138 |
| Gr2 | 20 | 50 | 345 | 40 | 275 |
| Gr3 | 18 | 65 | 450 | 55 | 380 |
| Gr4 | 15 | 80 | 550 | 70 | 483 |
| Gr5 | 10 | 130 | 895 | 120 | 828 |
| Gr7 | 20 | 50 | 345 | 40 | 275 |
| Gr9 | 15 | 90 | 620 | 70 | 438 |
| Gr12 | 18 | 70 | 438 | 50 | 345 |
| Product name | Specification |
| Titanium Ingots | Ф360mm~Ф1020mm,the maximum weight is up to 12t |
| Titanium Slab | (80~400)mm×(~1500)mm×(~2600)mm |
| Titanium Forgings | Weight per piece≤2000kg |
| Titanium Hot-rolled plates | (4~100)mm×(800~2600)mm×(2000~12000)mm |
| Titanium Cold-rolled plates | (0.01~4.0)mm×(800~1560)mm×( ~6000) mm |
| Titanium Strips | (0.01~2.0)mm×(800~1560)mm×L |
| Titanium Tubes / Pipes | Ф(3~114)mm×( 0.2~5)mm × (~15000)mm |
Titanium Grade | ·GR1, GR2, GR3, GR5, GR7, Gr9, Gr11, GR12 ·BT1-00,BT1-0,BT1-2 BT6 BT5-1 3B BT6c ·TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4 |
| Category | Material | Dimension(mm) | Specification |
| Titanium & Alloy ingots & bars | CP Ti, Ti-6Al-4V, Ti-6Al-4V Eli, Ti-3Al-2.5V, Ti-5Al-2.5Sn, Ti-5Al-2.5Sn Eli, Ti-0.05Pd, Ti-0.2Pd, Ti-6Al-7Nb, Ti-13Nb-13Zr, Ti-0.1Ru, Ti-3Al-8V-6Cr-4Mo-4Zr, Ti-6Al-4V-0.1Ru, Etc. | Standard or customized | GB/T 2965, ASTM B348 |
| Titanium & Alloy castings | GB/T 6614, ASTM B367 | ||
| Titanium & Alloy forgings | GB/T 25137, ASTM B381 | ||
| Titanium & Alloy plates | GB/T 3621, ASTM B265 | ||
| Titanium & Alloy strips & foils | GB/T 3622, ASTM B265 | ||
| Cold rolled Titanium & Alloy strip coils | GB/T 26723, ASTM B265 | ||
| Titanium & Alloy wires | GB/T 3623, ASTM B863 | ||
| Titanium & Alloy seamless tubes | GB/T 3624, ASTM B861 | ||
| Titanium & Alloy welded tubes | GB/T 26057, ASTM B862 | ||
| PM Titanium & Alloy components | GB/T 6887, ASTM B817 |
