| Quick Details | |
| Light Source: | 100W/300W LED COB |
| Input Voltage(V): | 90-250V ,50-60Hz |
| Lamp Luminous Efficiency(lm/w) | 99% |
| Certification: | CE,EMC |
| Model Number: | LED COB-3001 Series |
| Usage: | Theaters, stage , robust housing |
| Control mode: | DMX 512, Auto run and Master/Slave,sound… |
| DMX Channels Details for 1 color (E.g White, warm White) | CH1 - Dimmer intensity 0-100% |
| CH2 - Strobe, the speed from slow to quick |
| DMX Channels Details for 2 color (2in1) (2CH/4CH) (E.g White+warm White 2in1) | CH 1 - General Dimmer (1-255, dimmer, from dark to bright) |
| CH 2 - Color 1 (1-255, dimmer, from dark to bright) |
| CH 3 - Color 2 (1-255, dimmer, from dark to bright) |
| CH 4 - strobe & speed adjustment |
| DMX Channels Details for 3 color (3in1) (3CH/6CH) (E.g RGB 3in1) | CH 1 - General dimmer (1-255, from dart to light) |
| CH 2 - Color 1 (1-255, Dimmer,from dart to light) |
| CH 3 - Color 2 (1-255, Dimmer,from dart to light) |
| CH 4 - Color 3 (1-255, Dimmer,from dart to light) |
| CH 5 - Strobe & Color change/ color gradual change open |
| CH 6 - Speed adjustment |
| DMX Channels Details for 4 color (4in1) (4CH/7CH) (E.g RGBW 4in1) | CH 1 - General dimmer (1-255, from dart to light) |
| CH 2 - Color 1 (1-255, Dimmer,from dart to light) |
| CH 3 - Color 2 (1-255, Dimmer,from dart to light) |
| CH 4 - Color 3 (1-255, Dimmer,from dart to light) |
| CH 5 - Color 4 (1-255, Dimmer,from dart to light) |
| CH 6 - Strobe & Color change/ color gradual change open |
| CH 7 - Speed adjustment |
| DMX Channels Details for 5 color (5in1) (5CH/8CH) (E.g RGBWA 5in1) | CH 1 - General dimmer (1-255, from dart to light) |
| CH 2 - Color 1 (1-255, Dimmer,from dart to light) |
| CH 3 - Color 2 (1-255, Dimmer,from dart to light) |
| CH 4 - Color 3 (1-255, Dimmer,from dart to light) |
| CH 5 - Color 4 (1-255, Dimmer,from dart to light) |
| CH 6 - Color 5 (1-255, Dimmer,from dart to light) |
| CH 7- Strobe & Color change/ color gradual change open |
| CH 8 - Speed adjustment |
| DMX Channels Details for 6 color (6in1) (6CH/9CH) (E.g RGBWAUV 6in1) | CH 1 - General dimmer (1-255, from dart to light) |
| CH 2 - Color 1 (1-255, Dimmer,from dart to light) |
| CH 3 - Color 2 (1-255, Dimmer,from dart to light) |
| CH 4 - Color 3 (1-255, Dimmer,from dart to light) |
| CH 5 - Color 4 (1-255, Dimmer,from dart to light) |
| CH 6 - Color 5 (1-255, Dimmer,from dart to light) |
| CH 7 - Color 6 (1-255, Dimmer,from dart to light) |
| CH 8 - Strobe & Color change/ color gradual change open |
| CH 9 - Speed adjustment |

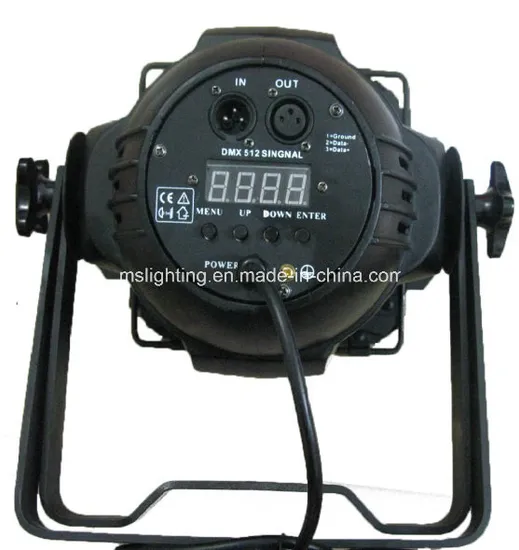

| Setting and Addressing: | 4-digit LED |
| DMX Data In/Out: | XLR 3Pin |
| Electronic Dimmer: | 0-100% linear dimmer |
| Electronic Strobe: | 1-30 flashes/second |
| warranty: | 2 year |
| Switch Power Supply | Built-in and auto switching |
| Power In: | Fixed |
| CRI (Ra>): | 95 |
| Working Lifetime(Hour): | 60000 |
| Center Beam illuminance: | 1) 19°: 10,600Lux@2.5mtr |
| 2) 26°: 7,500Lux@2.5mtr |
| 3) 40°: 5,500Lux@2.5mtr |
| Drive Mode: | Constant Current |
| Emitting Color: | CW/WW/RGB/RGBW/RGBA/RGBWA/RGBWAU…. |
| LED Colour temperature- Warm White | 3200- 3300K |
| LED Colour temperature- Cold White | 6500K |
| Cooling: | Entire casing as heat sink plus 1 noiseless fans |
| Flicker Free | Refresh Rate >2000 Hz |
| Lamp Luminous Flux(lm): | 1000 |
| Color Temperature(CCT): | CW/WW/RGB/RGBW/RGBA/RGBWA/RGBWAUV |
| IP Rating: | IP33 |
| Brand Name: | MSLighting |
| Shell colour | Black/White |
| Shell Material | Aluminum die-casting |
| Key point: | Temperature-protected handly |
| Working Temperature | -40 °C- +60°C |
