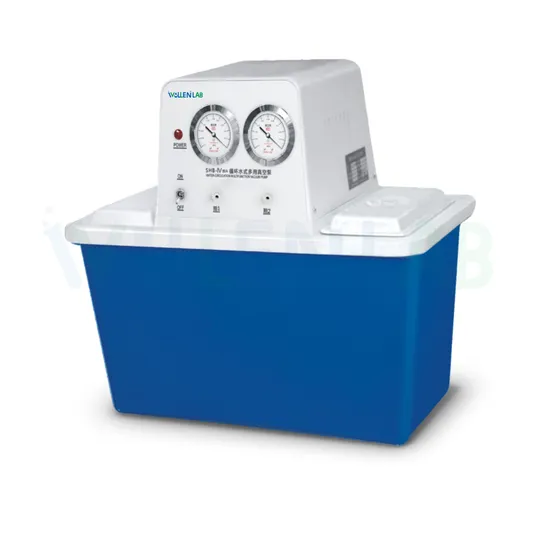

Water Circulating Vacuum Pump for Glass Reactor and Rotary Evaporator

Product Description

Water Circulating Vacuum Pump for Glass Reactor and Rotary Evaporator
Features:
Circulating water vacuum pump takes circulating water as working fluid to create negative pressure by fluid jet. It can provide negative pressure condition for the processes of evaporation, distillation, crystallization, drying, sublimation, pressure-reducing filtration and so on, particularly be suitable for labs and small scale test of industries such as universities and colleagues, scientific research institutes, chemical industry, pharmacy, biochemistry, foodstuff, pesticide, agricultural engineering, biological engineering.
Save water resources. Save more than 35% of electricity than other types of vacuum pump. Specialized fluid muffler can make the vacuum degree higher by reducing the gas in water and make it quieter by reducing the friction between gas and fluid. Equipped with double tap and double gauge, it can be used alone or in parallel. Resistant to acid, alkali, and solvents. High quality motor with fluorine rubber sealing which can avoid the invasion of corrosive gas. Replace water regularly to keep water clean to ensure prefect vacuum condition and to avoid dirt stains. Shorten the water replacing period when it is used to pump corrosive gas.

Model		SHB-III
Power		180W
Power Supply		110V~, 60Hz or 220V~, 50/60Hz
Flow		80L/min
Lift		10m
Ultimate Vacuum		0.098Mpa
Suction/Head		10L/min
No of Head		2
Safety		Check Valve
Reservoir	Capacity	15L
	Material	PP
Housing Material		PP
Ejector Material		PP
T-adapter Material		PP
Check Valve Material		PP+Copper
Sunction Nozzle Material		PP
Pump Material		SUS 304
Impeller Material		SUS 304
Hose Material		NR (natural rubber)
Shipping Dimensions (L×W×H)(mm)		385L×285W×420H
Gross Weight		11 KG

Supply Vacuum for Rotary Evaporator, Glass Reactor etc.
