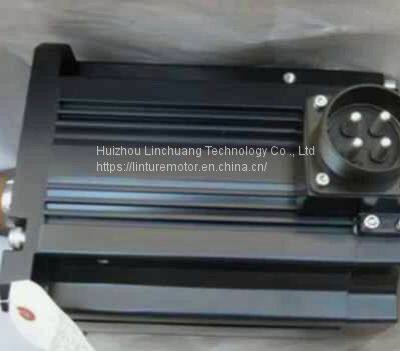

HF-H453BS Industrial Mitsubishi Servo Controller AC Have Shaft End

Product Details

Product Description

Product Description
Category:Model:Rated Output Power:Rated Speed:Series:Rating Current:Brand:Weight:High Light:

Industiral Servo Motor	HF-H453BS
4.5KW	3000r/min
HF Series	156A
Mitsubishi	35KG
ac servo motor,electric servo motor

Details:
Manufacturer: Mitsubishi
Product number: HF-H453BS
Description: HF-H453BS is an Motors-AC Servo manufactured by Mitsubishi
Servomotor Type: HF-H Series medium inertia high-torque motor
Rated Output & Maximum Rotation Speed: 4.5kW, 3000 r/min
Magnetic Brake: Unavailable (blank)
Shaft End Structure: Taper
Detector: Absolute Position 260,000 p/rev
Description
Brand
TypeModelOutputStall TorqueMaximum torqueRated SpeedMax speedRotor inertiaRated CurrentMax. CurrentVoltageWeightRated Torque

Mitsubishi Electric

AC Servo Motor

HF-H453BS

4.5 KW

37.2 Nm

122.0 Nm

3000 1/min

3500 1/min

112.0 kg.cm²

6.7 A

52.1 A

400 V

26.0-32 Kg

14.3 Nm

---
