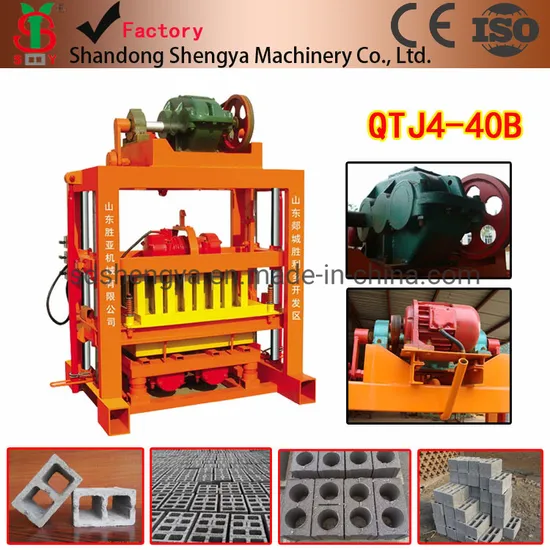

2014 New Qtj4-40b Shengya Semi-Automatic Concrete Hollow Block Making Machine

Product Description

DESCRIPYION OF QTJ4-40 BLOCK MAKING MACHINE
Overall Size 1580(L)× 1100(W)× 2500(H)mm
Cycle 40 Seconds
Carriage Size 850(L)× 550(W)× 30(H)mm
Vibration Frequency max. 3000r/m
Rated Power 9.6kw
Total Mass 1500kg
INRODUCTION OF QTJ4-40 BLOCK SHAPING MACHINE
The series of Block Shaping Machines, which meet the state
Standards of GBT8533-1998, are excellent in performance, high in
Efficiency, and lower in energy consumption. Since putting into the market,
Good economic profits and social benefits have been achieved. They
Are ideal equipment for high quality cement blocks. The products made by them can be piled up (3-5layers immediately after they are shaped. )
Characteristics:
Nine characteristics compared with clay brick:
1. Not using the clay as raw material to destroy any field.
2. Making use of three industrial wastes to change wastes into valuables
3. Not using fire to bake blocks and not building kiln to save the energy sources and fields.
4. No chimney to protect the environment and avoid pollution.
5. Production process is simple, they can be made everywhere
6. Low investment and achieving much faster results, customers can profit in half a year after investing.
7. The block can be produced all around the year.
8. Good looking, construction convenient, low-floor real jigsaw puzzle, and the high buildings do filler and cheap.
9. Technical criteria is better than those of red brick and green brick.
The building block machine, through mould and by application of fly ash and other industrial waste, can produce color cart road bricks, lawn
Bricks, cavity bricks, perforated cellular brick, kerbed bricks, tree well bricks and water conservancy revetment bricks, which are widely used in
The construction of municipal works, buildings, garden sand roads and its productivity is very high.

production capacity	400x200x200mm 2880 pieces /8hour 400x150x200mm 3600 pieces/8hour 400x100x200mm 4500 pieces/8hour
power	8.8kw
overall size	1580x1100x2100mm
cycle	40 seconds
pallets size	850x550x30mm
vibration force	30KN
vibration frequency	4000-4800/Minute
rated pressure	10Mpa
total weight	1500kg
electricity source	380v/50HZ

---
