Indoor FTTH Drop Optical-Fiber Cable Bow-Type Single/Multi Mode 1/2/4 Core Gjxh/GJXFH Belden/Panduit

Product Description

Indoor FTTH drop cable bow-type fiber optic cable Single/Multi mode 1core 2core GJXH/GJXFH optical cable Product Description
In FTTH application, low-cost and good adaptability, meet design and connection requirement for all kinds of drop cable; excellent anti-curved ability, support crowded cabling, low bending loss at small bend radius and high mechanical reliability, easy installation and distribution

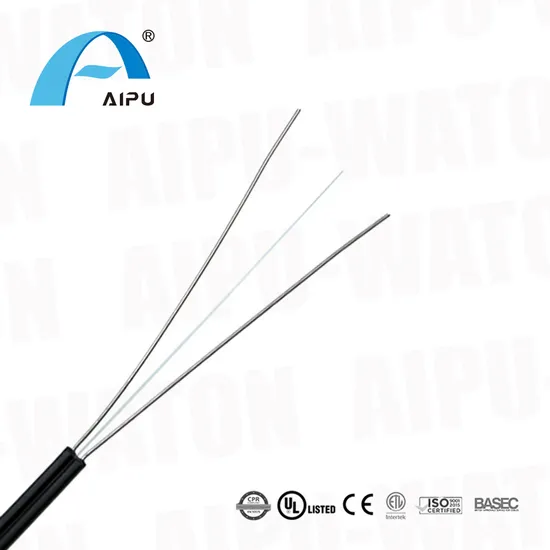

Suitable for FTTH indoor application, dimension: 2X3.0mm bow-type, steel wire strength member at each size, LSZH sheath, 1~4 cores G.657A optic fiberses )
Standards
In accordance with IEC, ITU and EIA standards
Features
Fibers are located in the middle of two strength members
Steel wire, FRP or KFRP strength member,
Flame retardant LSZH jacket for indoor use.
Specifications

Product Name	Indoor FTTH bow-type drop cable GJXH/GJXFH 1-4 cores
Product type	GJXH/GJXFH
Product Brand	Aipu or OEM
Product Number	APWT-GF-XH/APWT-GF-XFH
Specifications
Cable type	Bow-type
Fiber type	OM1/OM2/OM3/OM4/OS2
Strengthen Member	steel wire, FRP, KFRP
Cores	Up to 4
Sheath Material	Single PE
Armor	None
Operating Temperature	-40ºC~70ºC
Loose tube	None
Cable Diameter	2.0*3.0mm
Crush Resistance(Short term)	2200N
Crush Resistance(Long term)	1000N
Bending Radius Dynamic(mm)	40
Bending Radius static(mm)	20
Tensile strength(short term)	120N
Tensile strength(long term)	60N

Product Parameters

Optical Characteristic
Fiber		G652D	G655	50/125μm	62.5/125μm
Attenuation (DB/KM)	850/1300mm			3.0/1.0	3.0/1.0
	1310/1550mm	0.4/0.3	0.4/0.3

Company Profile
Shanghai Aipu Waton Electronic Industries Co.,Ltd. is a high-tech enterprise, who provides full solutions for Extra Low Voltage Copper Wires and Cables, Optic Fiber Cable, Structured Cabling System. Products include but not limited to Cat5e Cables, Cat6 Cables, Cat6a Cables, Cat3 Cables, Multi-pair LZSH cables, Elevator cable, FTTH Bow-type, Single mode and multimode Fiber Optic Cable, Patch Panel, Patch Cord, Module or Keystone Jack, Face Plate, Network Cabinets.
Shanghai Aipu Electronic wire & cable system Co.,Ltd., was founded in 1992. Through years of development, Aipu Waton has become a comprehensive high-tech enterprise integrated with manufacture, research & development, sales and service, which achieves management capital over 2000 Million RMB, factory area 80000m2, employees about 2000(including R&D staff more than 100). Our market and service network cover almost all large and medium-sized cities in China.
Being the leading enterprise in the industry, awarded as the vice-director unit of China Security and Protection Industry Association, Aipu Waton is committed to creating international famous brand as our responsibility. We keep expanding the production capability and renovating technology and improving service, management and company culture so as to provide high performance-price ratio products to all of our customers.
Aipu Waton has maintained excellent and long-term relationship with thousands of customers and makes full efforts to achieve mutual development with them.
Aipu Waton, your reliable partner.
FAQ
1.Q: What' s your MOQ?
A: For Aipu brand cables in stock MOQ is 305m/1000ft, if for customized items, the MOQ are 100ctns.
2. Q: How to get a sample?
A: Choose the style you want from our website, provide the address for us to quote the express fee. If the freight fee could be accepted, after received the payment, we will send out within 7 working days for the stock product. If for the customized product, it will take about 5-15 days. It would be glad and more convenient for both of us if you have an Express collect account.
3. Q: Are you a manufacturer or a trading company?
A: We are a structured cabling and ELV wire & cable manufacturer with 30 years production experience.
4. Q: Can you accept customize or design for us?
A: Yes, all of our products could export as our own brand or customize as customer requirement.
5. Q: Is it possible to get a free sample?
A: Yes, the small samples are free, and shipping cost have to be paid by your esteemed company.
6. Q: If I want to purchase, how to pay?
A: Usually, we do T/T in 30% deposit before production, 70% balance against copy of B/L, or LC. Other payment terms are negotiable depending on customer's request.
7. Q: What is your warranty period?A: We provide 25 years warranty for the cabling products.

---
