S304/S316L Stainless Steel Filter Housing Wine Lenticular Filter Housing 12"/16"

Product Description

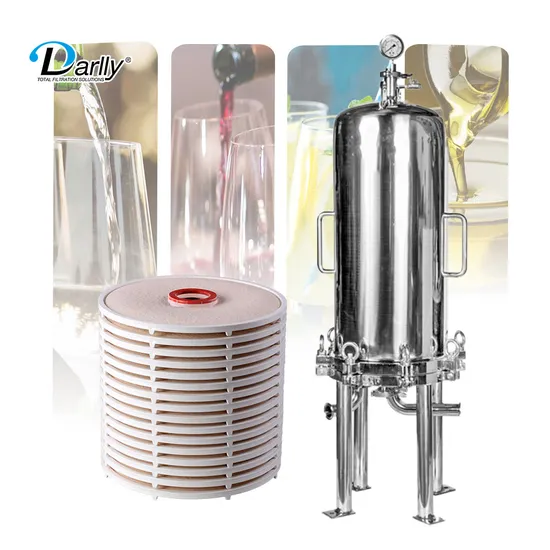

BDS-H Series Lenticular Filter Housing is designed for lenticular filter cartridge. with 1 to 4 lenticular filter cartridges to be vertically installed inside to meet different flow requirements. The housing's structure is designed in accordance with sanitary requirements. Easy cleaning, mirror polishing, 304/316l Stainless steel features ensure the housing is suitable for the widest range of applications.
Applications
· Pharmaceutical
· Chemical
· Food and Beverage
· Dewaxing
· Research & Development
Features
· Housing accommodate one to four 12",16" standard cartridge
· Sanitary design for easy cleaning, the inlet/outlet can be configured special discharge valve, easy to drain
· Easy to replace the filter stacks, reduce the filter medium leakage
Technical Specification

Connenction of shell	Flange
N1,N2 In-outlet	Flange, Tri-clamp, Thread
N3 Pressure gauge (option)	1.5" Tri-clamp
N4 Drain valve (option)	1" Tri-clamp
N5 Vent valve (option)	1/2" Tri-clamp
Finish type	Mechanical
Polishing precision	0.3μm Inner surface Ra≤0.6μm
	0.4μm Outside surface Ra≤0.8μm
Max Operating pressure	0.6Mpa
Max Operating temperature	150°C
Online or steam sterilization	121°C / 30min

Dimension Parameters
Ordering Information
