10/ 20 /40 /45feet Marine Container Lifting Beam Supplier Manual Spreader Bar Manufacture Container Lifting Spreader

US$5,000.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
20feet
Color
Customized
Type
Semi-Automatic
Delivery Time
30days
Delivery Port
Shanghai Port
Dead Weight
2.2t
Transport Package
Nude Package or as Your Required
Specification
20ft or 40ft
Trademark
China Enjue
Origin
China
HS Code
843141000
Production Capacity
300 Sets/Year

Product Description

ISO container lifting beam/ full Automatic container spreader without power/20feet 40feet semi automatic container lifting frame container spreader/10feet/ 20feet /40feet /45feet marine container lifting beam supplier manual spreader bar manufacture Container Lifting Spreader design
Type SWL Dead Weight
20feet Container spreader 25-35T 1.2-2.6T
40feet Container spreader 32-45T 3.0-3.5t

Automatic container spreader without power

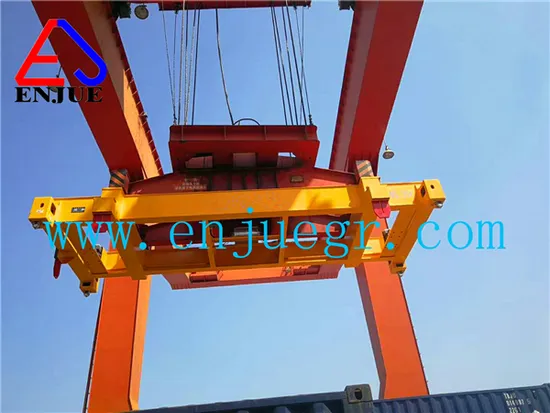

The spreader is equipped on 40t gantry crane to load and unload containers. The spreader is light, no power, easy to operate and cheap. There are two kinds of spreader 32t-20' and 40t-40'.
Operation: first put the four main lifting ropes riggings of the spreaders and one turning stretch wire rope in the hook of the gantry crane. Before lifting, the guider points to open direction. By the localizers at the four sides of the spreader and the skilled operation, the four turning locks of spreader are locked into the corner, and then the hook is started slowly. The stretch wire rope is firstly tight to pull turning mechanism and turn the turning lock in 90°and be closed, and then keep lifting the hook .The container is lifted.
Lay container down: After hanging containers to be scheduled position, keep the hook fall about 1-2m and then lift the hook again. Before the main lifting wire rope is dragged, lift turning rope to make turning lock back to open position and lift the hook to depart the spreader and container .By now the operation is finished.
Maintenance: The link pole of the spreader and turning mechanism should be opened to check regularly and add lubricating oil to make every part turn fluently. If there are obvious damages and distortion, spreader and wire rope should stop work at once.
This kind manual container lifitng spreader has no power and hydraulic system .it is easy maintenance and widely used in the port
Packaging & Shipping

Come on, Talk with me immediately if you interested in it!!
