Durable New Technology Plastic Machine 788 Tons Injection Moulding Machine

Product Description

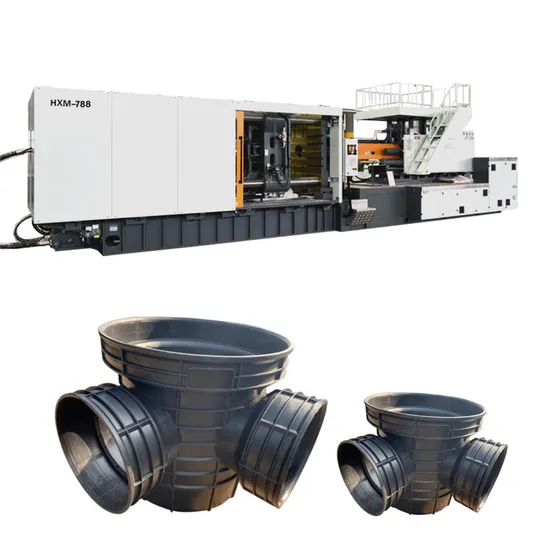

1. HXM788-PVC injection molding machine
2. Specifications

MODEL: HXM788PVC
TECHNICAL PARAMETER TABLE
INJECTION UNIT	SCREW DIAMETER	mm	100
	SCREW L/D RATIO	L/D	21
	INJECTION CAPACITY IN THEORY	cm3	4264
	INJECTION WEIGHT(PVC)	g	5238
	INJECTION PRESSURE	MPa	173
	INJECTION RATE	g/s	909
	PLASTICIZING CAPACITY	g/s	121
	SCREW SPEED	rpm	110
CLAMPING UNIT	CLAMPING FORCE	KN	7880
	MOVING MOULD-PLATE STROKE	mm	1120
	MAX. MOULD HEIGHT	mm	1050
	MIN. MOULD HEIGHT	mm	400
	SPACE BWTWEEN TIE-BARS (W*H)	mm	1070*1020
	HYDRAULIC EJECTOR FORCE	mm	227
	HYDRAULIC EJECTOR STROKE	KN	300
	EJECTOR NUMBER	n	21
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR POWER	KW	40+40
	HEATING CAPACITY	KW	48.8
	MACHINE DIMENSION (L*W*H)	m	12.18*2.40*2.74
	MACHINE WEIGHT	t	42
	OIL TANK CAPACITY	L	1315

Specializing in PVC series of injection molding machines
1.Standard with double core pulling device for fitting molds;
2.Air fan cooling equipment on the barrel, PID temperature control system;
3.Special screw and barrel for PVC;
4: Enlarge the charging motor with high torque force and low speed;
5. Extended width of safety door for PVC fitting mold.
3.Application

4. Actual shooting of trial model
Refernce
Machine: HXM 358PVC Machine: HXM 418PVC Machine: HXM 830PVC
45° WYEE 90° Elbow Plain Tee
Mould: 2 cavities Mould: 2 cavities Mould: 1 cavities
Cycle time: 55s Cycle time: 60s Cycle time: 70s
5. Cabinet case
Transportation by sea or rail to Mexico, Bangladesh, Turkey, Ethiopia, Algeria, Nigeria, Saudi Arabia, Iran, Russia, Sudan, Thailand, Peru and other countries.
6. Workshop
We have six workshops, which are machine development workshop, machine storage workshop, spare parts storage workshop.
1 workshop: SP(Middle-speed injection molding machine) and HXYD(Fully-electric and high-speed injection molding machine) production R & D workshop, also stored in the injection molding machine production required parts.
2 workshop: HXM(Servo energy injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 128tons, 158tons, 418tons, 478tons, HXH 260tons, 280tons, 430tons and so on.
3 workshop: HXM(Servo energy injection molding machine), PVC injection molding machine, PET injection molding machine, HXS(Clear two-color injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 98tons, 268tons, from 538tons to 2500tons, HXH 160tons, 200tons, 350tons, 380tons, HXS160tons, 200tons and so on.
4 & 5 workshop: HIGHSUN's independent R & D workshop, automatic processing center. According to customer feedback to the performance of the machine constantly improve, to provide customers with better injection molding machines.
6 workshop: Stored in screw barrel, hopper, hydraulic motor, thermocouple, valve, sheet metal injection molding machine accessories.
7. HIGHSUN
HIGHSUN is one of the most professional lnjection Molding Machine manufacturer with morethan 50 years' history (founded 1973)in Ningbo, China.
As one of the leading innovator and developer of lniection Molding Machine, HIGHSUN has the world's first class production plant occupied more than 100 million square ft; equipped with the most advanced CNC machining system and processing equipments & inspection devices (CNC utilizationratio: above 83%), achieve with mass production with higher-quality and quicker-delivery.
Production capacity may reach 7000sets per year. Supply variety of series with clamping force from 98ton to 2500ton coverage with HXM(servo drive), HXH (high-speed performance), SP(middle-speed), HXYD(Hybrid & Full electric), HXZ(two-platen), HXS(double color) and special solutioras PET series, PVC series etc.
Realized more than 110million US$ sales in 2018, constantly keep 15% increase in sales in the past 3years; and from 2014 to 2018, a fifth consecutive HX awarded TOP-3 leader by CPIMMA for comprehensive strength of IMM manufacture and develop.
Based on strict management,superior quality, stressing reputation and paying attention to service. HIGHSUN hot sale to Europe and United States, Asia, Africa and the world, won majority ofcustomers good reputation and recognition.
8. Certification

---
