WMTCNC precision grinder MD618A small type surface grinding machine

Product Description

Product Description

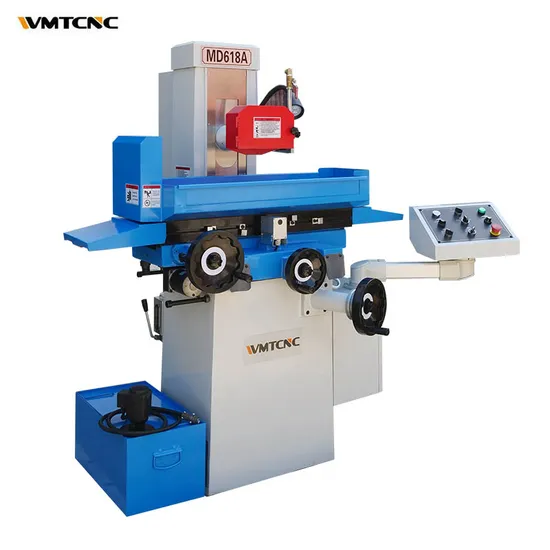

WMTCNC precision grinder MD618A small type surface grinding machine main features: 1. Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry. 2. The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Specification		Unit	MD618A
Max.workpiece to be ground(LXW)		mm	460x180
Maximum travel of table(L X W)		mm	500x190
Table maximum cutting area(LX W)		mm	500x190
Number of T-Slot		mm	1x14
Distance from table surface to spindle center		mm	335
Wheel size(dia X width X bore)		mm	φ180x13xφ31 .75
Spindle speeds (50HZ)		r/m	2800
Table longitudinal (left and right) speed (stepless)		m/min	3--23
Table horizontal (before and after) the amount of feed	Continuous (variable speed)	mm/min	150
	Intermittent (stepless)	mm	0-5
	The handwheel rotatos	mm	2.5
	Hand wheel each grid	mm	0.02
Vertical (up and down) feed	The handwheel rotates	mm	1 .25
	Hand wheel each grid	mm	0.01
The total input power		w	150
X-feeder outout speed		/min	0-225
X-feeder size		m	280*130*120
Spindle motor		kw	1.1
Cooling motor		w	40
The machined surface of the base of parallelism		mm	300/0.005
Surface roughness		μm	Ra0.32
Net		T	0.75
Cross		T	0.8
Packing size (LxWxH)		mm	1080×1240×1900

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
