Basic Info.
Process
Concentration and Dry
Automatic Grade
Automatic
Application
Candy, Chocolate
Customized
Non-Customized
Max. Tablet Thickness(mm)
7
Capacity (PCS/H)
4200 PCS/H
Rotation Speed(Rpm)
1400 Rpm
Material
304 Stainless Steel
Transport Package
Wooden Box Packaging
Specification
500*430*670MM
Production Capacity
50000
Packaging & Delivery
Package Size
70.00cm * 55.00cm * 85.00cm
Package Gross Weight
96.000kg
Product Description
Product Description
Product Description:

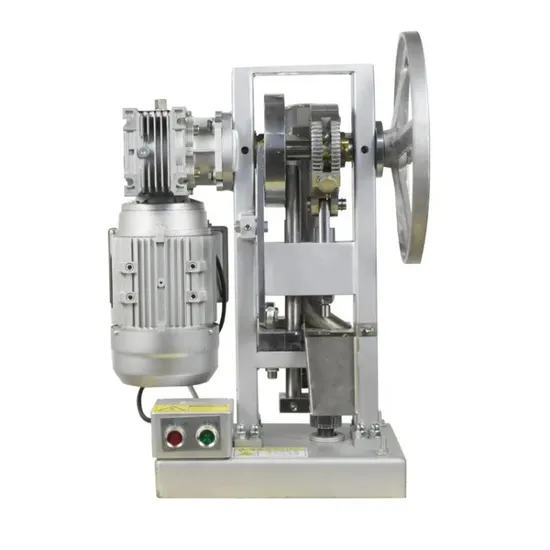

Single Punch Tablet Press can press powder and granular raw materials into tablets. It is widely used for trial production and small batch production in pharmaceutical factories, chemical plants, food factories, hospitals, scientific research institutions and laboratories.
This machine has good performance, strong adaptability, small size and light weight. Besides, it is easy to use and repair. When power supply is unavailable, it can press tablets by manually rotating the big handwheel. It is only equipped with one set of punch dies and filling depth and tablet thickness are adjustable. This machine can meet the demand of different kinds of both Chinese and Western medicine tablets and other similar products. It's very popular among customers in various industries.
Model
| THDP-3
| THDP-5
| THDP-6
|
Max. Pressure (kn)
| 30
| 50
| 60
|
Max. dia. of tablet (mm)
| 5-15
| 5-15
| 5-18
|
Max. Depth of fill (mm)
| 12
| 18
| 18
|
Thickness of largest tablet (mm)
| 6
| 7
| 7
|
Production capacity (pcs/h)
| 4000
| 4000
| 4000
|
Motor (kw)
| 0.75
| 0.75
| 1.5
|
Overall size(mm)
| 450*300*550
| 480*460*620
| 500*430*670
|
Net weight(kg)
| 45 kgs
| 55
| 85
|
Packing weight
| 50
| 85
| 92
|
>>
