Product Description
Product Description
Product Usage and Features

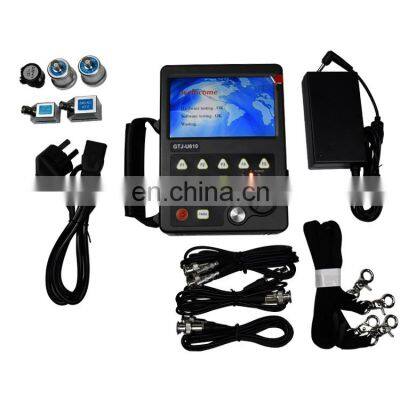

U600 Series Digital ultrasonic flaw detector
U600 Digital ultrasonic flaw detector and thickness measurement integrated machine integrated ultrasonic flaw detection, ultrasonic thickness measurement, and ultrasonic penetration functions in one. It has various functions such as ultrasonic thickness gauge, WIFI connection network or mobile phone, HDMI, digital filtering, etc., applicable Ultrasonic testing for the surface and internal defects of metal and non-metal materials in the industrial field.
The design meets the requirement of ergonomics, and is simple, intuitive, convenient and practical. Provides a very high level of flaw detection with simple basic operations, which makes ultrasonic flaw detectors easy to use for both experienced and novice industry personnel.U600 brings together modern high-tech such as ultrasonic flaw detection, thickness measurement, computer, electronics, mold, technology, etc., to achieve the perfect combination of these high-tech. It provides the industry with more superior performance and more powerful machines, which can be widely used in various fields such as petroleum, chemical industry, metallurgy, shipbuilding, aviation, and aerospace.
1.
| Small size and light weight, including the battery weight is only 0.75kg.
|
2.
| Built-in domestic and foreign industry standards: The instrument has 11 national standards built-in, compatible with European standards.
|
3.
| EN12668-1: 2010, which is convenient for setting various DAC and AVG curve parameters.
|
4.
| Accurate flaw detection High sensitivity.
|
5.
| High-precision thickness measurement. Coating can be penetrate (U620 /630).
|
6.
| High-resolution 5.0-inch (800 × 480) widescreen true-color TFT LCD display.
|
7.
| Recording function and mass data storage.
|
8.
| HDMI interface Support for teaching use (U630)
|
9.
| WIFI communication Query flaw detection results anytime and anywhere (U630)
|
10.
| Low power consumption design Reliable function.
|
Technical Parameters
Model
| GTJ-U610
| GTJ-U620
| GTJ-U630
|
Working principle
| Ultrasonic
|
|
|
Working frequency range
| 0.5~20MHz
|
|
|
Plus Width
| Square wave width 30 ~1000ns, step0.1ns
|
|
|
Detection range
| 0 to 14000(steel longitudinal wave)mm
|
|
|
Pules displacement
| -45 to 1000(steel longitudinal wave)mm
|
|
|
Material sound velocity
| 300~15000m/s
|
|
|
Detection method
| Negative wave,forward wave,two-way wave,filtering,RFwave
|
|
|
Gain adjustment
| 0 to 110dB: 0.1/1/2/6 step adiustment
|
|
|
Thickness measurement function
| No
| Normal mode 0.75-300mm penetrating coating 2-150mm
| Normal mode 0.75-300mm penetrating coating 2-150mm
|
WIFI/HDMI/Digital Filter
| No
| No
| Phone connection/HD pojection/digital filtering
|
Valve
| off/incoming wave/lost wave
|
|
|
DAC, AVG function
| DAC curve, AVG curve
|
|
|
Attenuator error
| Every 12dB±1dB
|
|
|
Vertical linear error
| ≤3%
|
|
|
Horizontal linear error
| ≤0.5%
|
|
|
Dynamic Range
| ≥30dB
|
|
|
Flaw deterction margin
| ≥65(2.5Z20N probe)dB
|
|
|
Operating Voltage
| 12V(battery, DC)
|
|
|
Physical dimension
| 180*130*40mm(height*width*depth)
|
|
|
Storage
| Expansion TF card, mass storage
|
|
|
Detailed Images
Ultrasonic Falw Detector
U600 Digital ultrasonic flaw detector and thickness measurement integrated machine integrated ultrasonic flaw detection,
ultrasonic thickness measurement, and ultrasonic penetration functions in one.
Company Introduction
Cangzhou Lovely Technology Co.,Ltd.
It is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.
Packing & Delivery
After Sales Service
FAQ
Q1: How long is the lead time?A: Normally 3-7 days. Depend on the order quantity.Q2: What is the transportation method?A: By Express, By air or By Sea.Q3: What are the payment terms?A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.Q4: How is the after-sales service?A: 12 months quality warranty with online technical support.Q5: Are there any factory quality certificates?A: We have the ISO certificate and National patent certificates.Q6: Is Lovely test trustworthy?With more than 12 years' production experience. We would give you an excellent experience!
>>
