Automatic Modularity Chicken Pig Feed Mill Mixer Processing Unit

US$300,000.00-1,000,000.00 1 Set (MOQ)

Basic Info.

Model NO.

9HWP series

Processing Object

Forage, Straw

Processing Technics

Crushing-before-Mixing

Screen Mesh

With Screen Mesh

Grinding Equipment Type

Feed Hammer Mill

Pellet Mill Type

Ring Die Pelleter

Condition

New

Applicable Materials Shape

Granular

Warranty

Two Year

Capacity

3-5 T/H

Certification

ISO CE

Voltage

3 Phase

Model

520

Mixer Capacity

1000 Kg/Batch

Mixer Power

15 Kw

Crusher Capacity

3-5 T/H

Crusher Power

18.5/22 Kw

Transport Package

Wooden Case

Trademark

YiMing

Origin

Henan China

HS Code

8436100000

Production Capacity

100 PCS/Year

Product Description

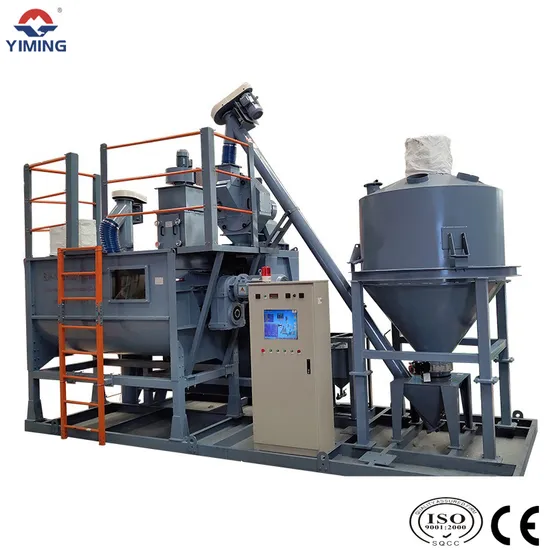

Automatic Modularity Chicken Pig Feed Mill Mixer Processing Unit
Product Description
1: Modularity design ,compact structure, quick instannation and easy operation
2: The main raw material adopts automatic batching ,and the batching precison: static ≤1 ‰
3: Automatic liquid additon, with the dosing system to ensure accuracy and avoid forgetting to add liquid .
4: The crushing system is equipped with an independent pulse filter to improve crushing efficiency and reduce dust pollution .
5: PLC touch screen automatic control, precise control and easy to use .
Classical model for scale farm feed processing.
Product Parameters

Model	CRUSHER POWER (KW)	MIXER POWER (KW)	Total power (kw)	Capacity (t/h)		Batching way	Liquid addition	Control way
				2.5 mm	8mm
SJZD-3000	18.5/22	15	63.6/67.1	2.5-3.5	4-5	Main raw material adopts automatic batching	Automatic addition	PLC + touch screen
SJZD-4000	22/30		66.7/74.7	3-4	5-6
SJZD-5000	37/45		84/92	4-6	6-8
SJZD-8000	55/75		118.8/138.8	6-8	8-12

Detailed Photos

Workshop processing ability
Packaging & Shipping
Customer Visit
