Diameter 10 11 12 13mm Glue Wax Guiding Aramid Kevlar Paper Carrier Rope with Core for Paper Machine Dryer Cylinder

Product Description

Product Description

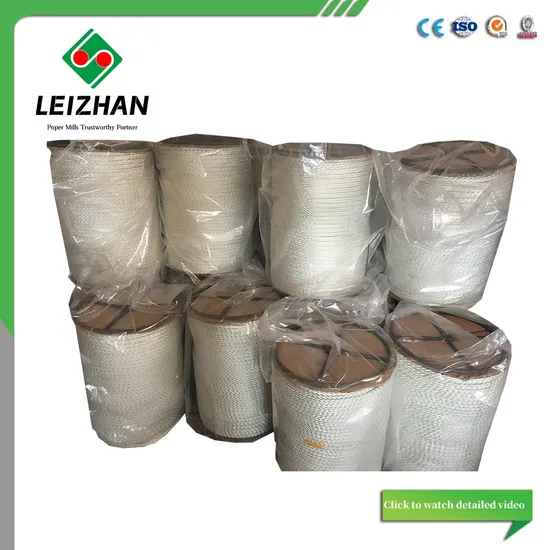

Paper Machine Paper Carrier Rope

Paper carrier rope is a high-temperature, quality-impregnated filament nylon rope. Applied to each thread by the China lift sling group developed method, the improved impregnation gives greater protection to the fibers of the rope and an excellent surface for gripping the paper tail. The unique hollow braided construction resists flattening under normal operating tension, further enhancing its threading efficiency and ease of splicing. If extra resistance to elongation is required, an option is available in filament polyester, specifically designed for wet conditions.
Detailed Photos

Product Parameters
The paper carrier rope is a rope used for threading, which is woven from nylon fibers. It is a necessary paper threading tool for paper machines in paper mills. It is the connecting link of all rollers of various sizes in various paper machine parts such as sizing, coating, post-drying, and reel. It is responsible for pulling the narrow paper web from one roller to another. Its function is very important. Parameters:

Nominal Diameter	Linear density		Minimum breaking strength	Elongation
	Nominal Value (ktex)	Allowable Deviation(%)
8	52	±5	10800	30
10	72		14700
12	78		16700
14	84		18080
16	110		22000
Remark:1 ktex=1 g/m
