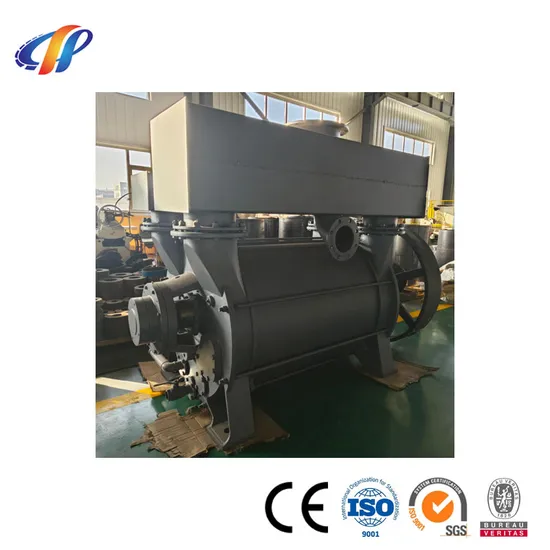

Water Ring Vacuum Pump with Belt, Gear Box, Diesel Engine High Vacuum

Product Description

Shenyang Haipurui Vacuum Technology Co.,ltd.
=======================================
Vacuum Pump--Water Ring Vacuum Pump
OVERVIEW
Experience the superior efficiency of our Water Ring Vacuum Pump, expertly crafted to extract gas and water vapor, achieving an impressive ultimate pressure of absolute pressure 3300pa, equivalent to a 97% vacuum.
The innovative 2BV series employs the ingenious recycling of the working fluid using the extracted medium (liquid), forming an eco-friendly closed cycle system that ensures zero emissions and enables effective solvent recovery.
For sustained operation under suction pressure nearing the ultimate vacuum (working liquid's saturated vapor pressure), it is essential to connect the cavitation protection pipe to safeguard the pump's integrity.
When functioning as a compressor, this pump achieves an impressive outlet pressure of up to 0.26Mpa (absolute pressure), offering versatile application..
Our advanced 2BV2-EX and 2BV6 series water ring vacuum pumps and compressors are engineered to excel in pumping explosive gases, adeptly meeting the demands of various flammable and explosive environments with performance parameters mirroring those of the 2BV2 and 2BV5 series.
Parameter
Transmission Mode: Choose from direct connection, belt, or reducer. Enjoy an air extraction rate ranging from 80.8-1030m³/min, coupled with an impressive power range of 110Kw-1520Kw.

Model	Extreme pressure hPa	Max gas capacity m3/min	Speed r/min	Transmission mode	Max shaft power Kw	Motor Kw	Working fluid flow rate m3/h	Suction and exhaust diameter mm	Pump weight Kg
2BEC 40	160	80	340	Belt or gearbox	80	90	9.9	300	2930
		95	390		95	110
		110	449		115	132
		115	490		134	160
		124	530		148	185
		133	570		167	200
		143	610		189	220
2BEC 42	160	120	360	Belt or gearbox	110	132	13.5	300	3360
		127	390		132	160
		142	440		157	185
		156	490		180	200
		169	530		204	220
		178	570		229	250
		193	610		260	315
2BEC 50	160	145	260	Belt or gearbox	142	160	18.3	350	5440
		169	300		171	200
		190	340		203	250
		212	380		238	280
		230	420		277	315
		258	470		338	400
2BEC 52	160	178	260	Belt or gearbox	172	200	22.2	350	6000
		205	300		210	250
		233	340		245	280
		257	380		288	315
		280	420		337	400
		312	470		412	500
2BEC 60	160	211	230	gearbox	205	250	25.4	400	8200
		240	260		243	280
		266	290		285	315
		291	320		322	355
		316	350		365	450
		360	400		465	560
2BEC 62	160	260	230	gearbox	250	280	30.9	400	9100
		295	260		300	355
		325	290		340	400
		355	320		390	450
		386	350		450	500
		436	400		570	630

Model	Extreme pressure hPa	Max gas capacity m3/min	Speed r/min	Transmission mode	Max shaft power Kw	Motor Kw	Working fluid flow rate m3/h	Suction and exhaust diameter mm	Pump weight Kg
2BEC 67	160	305	210	gearbox	280	315	36.4	500	11390
		340	240		350	400
		386	270		415	450
		425	300		465	560
		462	330		545	630
		516	370		670	800
2BEC 72	160	365	190	gearbox	345	400	43.5	500	14150
		405	210		395	450
		458	240		475	560
		509	270		550	630
		563	300		642	710
		635	340		795	900
2BEC 80	160	540	210	gearbox	515	560	55	600	18500
		580	225		590	630
		620	240		670	710
		660	255		750	800
		700	270		840	900
		750	290		930	1000
2BEC100	160	800	155	gearbox	730	800	80	700	31000
		855	165		840	900
		905	175		900	1000
		990	190		1000	1120
		1030	200		1140	1250

Main Feature
--This pump series features a robust hot fit interference fit between the impeller and shaft, enhancing the safety factor for the shaft and bearings, thus ensuring remarkable reliability and smooth, low-noise operation.
--The cleverly designed inspection holes on the pump's end cover facilitate easy viewing of internal structures, and allow for the replacement of suction and exhaust valve plates without needing to dismantle the pump. Additionally, packing replacement is conveniently performed without removing the pump cover.
--Our pumps incorporate a system optimization design alongside a flexible exhaust valve design to mitigate over-compression during gas compression. This technology allows for automatic adjustment of the exhaust area, significantly reducing energy consumption and ultimately achieving peak operating efficiency.
--Boasting a maximum gas extraction capacity of 1030m³/min, this product is meticulously crafted to cater to processes requiring high extraction speeds.
Material Selection
Tailor the material to suit different medium liquids, typically available in 304, 316, 2204, 2507, and titanium.
More Pictures
For further details, please feel free to contact us via email.
Kindly send the pump data sheet for an accurate quotation.
More Products Exhibition
Factory
=============================================================
Shenyang Haipurui Vacuum Technology Co., Ltd. stands as a beacon of innovation, dedicated to pioneering the research, development, design, manufacturing, sales, and service of vacuum pumps and complete vacuum equipment. With a team of adept vacuum technicians, we harness cutting-edge vacuum technology to continually innovate and refine product design and application, delivering exceptional solutions tailored to meet diverse industrial vacuum application needs. We proudly hold ISO9001 quality management system certification and have amassed twelve patents and three software copyrights, relentlessly striving to advance our R&D capabilities. Our extensive product range finds applications across industries such as petrochemicals, pharmaceuticals, healthcare, electronics, new materials, aerospace, printing, packaging, papermaking, and automation. At Haipurui, our profound technical expertise and comprehensive, high-quality services empower our clients and partners to achieve maximum success.
At Shenyang Haipurui Vacuum Technology Co.,Ltd., our product offerings are meticulously categorized into two pivotal segments. The first segment, vacuum acquisition equipment, features an array of high-performance vacuum pumps and compressors. These encompass the robust 2BV, 2BE, SK, and 2SK series of liquid ring vacuum pumps and compressors, in addition to the SY and 2SY series liquid ring compressors, as well as the efficient XD series single-stage rotary vane vacuum pumps. The second segment is our esteemed vacuum application products, which incorporate the innovative 2BW series liquid ring vacuum pump closed cycle system, the powerful JZJ series Roots vacuum pump unit, and the advanced ZF series central vacuum system.
Our vacuum application products stand out by utilizing superior vacuum acquisition equipment as the core vacuum host or source. This sophisticated system is augmented with a myriad of components, including gas-liquid separators, vacuum buffer tanks, efficient heat exchangers, and comprehensive pressure, temperature, and liquid level transmitters. Furthermore, it integrates replenishment solenoid valves, inlet pneumatic valves, cavitation protection devices, precise working fluid flow meters, and intake filters. These elements are perfectly synchronized to provide real-time monitoring of various control points. The system can be seamlessly configured with a PLC and a human-machine interface touch screen, enabling full automation of pumps and valves per user-specific processes. This setup not only logs diverse parameters and operational statuses in real-time but also epitomizes genuine process automation.
Recognitions: Our achievements have been acknowledged through various patent certificates that we have proudly acquired.
FAQ
1.Are you a factory or trading company?We are a factory and we have professional team of workers,Designers and inspectors.2.Do you accept custom?Of course.We have professional teams who make your designs,photos,imagines and OEM orders into real production.3.What's your shipping terms?If you need to ship by air,we can use DHL,UPS,FedEx,TNT or EMS.If you need to ship by sea,we have many good forwarders to work with,they can provide the best price for you.
4.Whats your payment terms?
Until now , we can accept TT.LC.West union.
5.What information do you need to offer a quotation?
Pump Capacity: m³/h or L/S
Voltage: V
Frequency: Hz
If you have full data sheet,pls send to us also.

---
