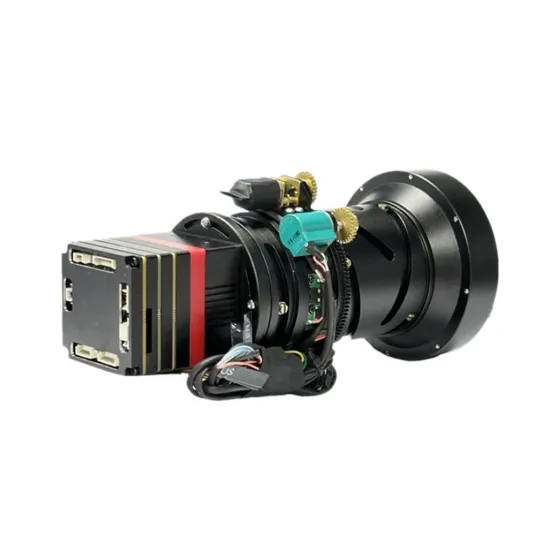

384X288 15-75mm Zoom Lens Environmental Monitoring Thermal Imaging Sensor Module

US$5,400.00
5-99 Pieces
US$4,700.00
100+ Pieces

Basic Info.

Model NO.
CQ-LTML45C12-75AH
Output Signal Type
Digital Type
Production Process
SemiConductor Integrated
Material
Semiconductor Material
IP Rating
IP67
Certification
CE
Customized
Customized
Resolution
384X288
Frequency Range
8um-14um
Pixel Size
12um
Lens
15-75mm Zoom
Analog Output
CVBS
Network
100m Network Port
Communication Port
RS232, RS485
Transport Package
Carton
Trademark
CQ or customized
Origin
Zhejiang
Production Capacity
1000 PCS / Month

Product Description

Description:. Using vanadium oxide uncooled infrared detector, it has high sensitivity and good image quality.. Supports network access and has rich image adjustment functions. Support RS232, 485 serial communication. Built-in 1 alarm input and 1 alarm output, supporting alarm linkage function. Supports Micro SD/SDHC/SDXC card storage up to 256G. Rich interfaces for easy function expansion. Can be easily integrated into all types of vehicles as well as portable, hand-held or highly mobile devices
ModelCQ-LTML45C12-75AH
Detector typeVOx Uncooled thermal Detector
Effective Pixels384x288
Pixel size12μm
Response band8~14μm
NETD≤35mK(@F1.0, 300K)
Lens15 ~ 75mm motorized zoom
FOV17.4° x 13.1° ~ 3.5° x 2.6°
F valueF1.0 ~ F1.1
FocusAuto focus
Interface ProtocolONVIF (Profile S, Profile G), SDK
Resolution25fps (384x288)
Image settingsBrightness, contrast, and gamma are adjustable through the client or browser
Network Interface100M network port
Analog OutputCVBS
Communication serial portRS232, RS485
Storage functionSupport Micro SD/SDHC/SDXC card (256G) offline local storage, NAS (NFS, SMB/CIFS are supported)
Power supplyDC12V±10%
Operating temp. and humidity-30ºC~60ºC, humidity less than 90%
