Basic Info.
Heating and Ventilation Equipment Type
Air Duct
Epidemic Prevention Equipment
Aerosol Immune Machine
Blade Type
Straight Teeth
Computerized
Computerized
Certification
ISO9001:2008, CE
Transport Package
Carton Boxes
Specification
300x300x250mm
Production Capacity
10000
Product Description

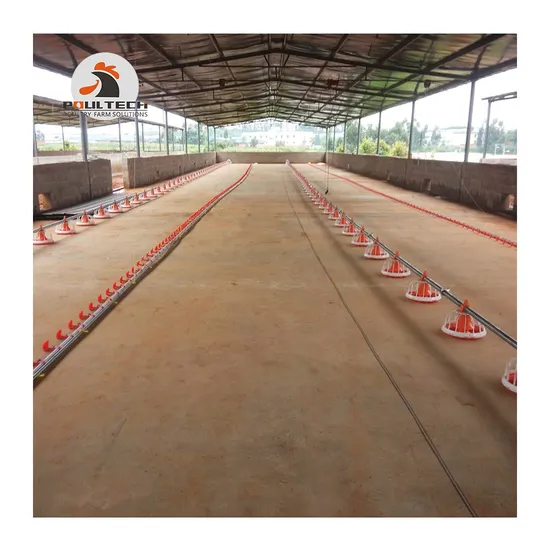

Automatic Broiler Feeding and Drinking System
Our chicken equipment including the following systems,
1. Main feeding deliver system.
2. Vice pan feeding system.
3. Water supply and nipple drinking system.
4. Tunnel ventilation system.
5. Environment control system.
1. Main Feeding Deliver System.
Main feeding deliver system, consist of silo with auger deliver system, or main hopper with auger deliver system.
1. For full automatic operation of feeding deliver system, silo is necessary for main feeding delivery.
2. For saving investment, we can use main hopper with auger system instead of silo, need workers to put the feed in hopper for delivery.
2. Vice pan feeding system.
Our vice pan feeding system, consist of vice hopper, feed pipe with hunging system, auger with motor.
Specification: 3-4 pans per 3 miters, feed pipe diameter: 45mm, pan capacity: 45-55 birds/pan.
3. Water supply and nipple drinking system.
Water supply and nipple drinking system, consist of water front parts, nipple drinking line, hanging system, water pressure regulator and water level end display.
Chicken Age (days) | 1-7 days | 8-14 days | more than 15 days |
Water Level Height of Display Tube (mm) | 50-80mm | 80-200mm | 200-300mm |
Nipple drinker capacity: 8-12 birds/nipple.
4. Tunnel ventilation system.
Exhaust Fans: 50 inch fans (Box fan or Cone fan), fans with accredited Europe of CE certification.
Guarantee period for fans: One year, the easily damaged parts are offered free of charge.
Description
| Blade Diameter (mm)
| Frequency (Hz)
| Current (A)
| Input Power (KW)
| Voltage (V)
| Rotational Speed (r/min)
| Airflow (m3/h)
| Size(mm)
| Weight (Kg)
|
50" box fan
| 1270(50inch)
| 50
| 2.8
| 1.1
| 380
| 1440
| 43170
| 1380*1380*450
| 89
|
50 cone fan
| 1270(50inch)
| 50
| 2.8
| 1.1
| 380
| 1440
| 51020
| 1380*1380*1360
| 100
|
Evaporation Water cooling pad system: It is best effecitive combiation to decrease the temperature in poultry house in hot cliamte area.
Water cooling pad curtain of broiler poultry farming equipment.
Cooling Paper Size : length: 1.5 m ,1.8m , 2.0 m, width:0.6m, thickness : 0.15m.
Size with aluminum allloy frame : 1.66m ,1.96 m ,2.16 m.
The best air speed getting trough water cooling pad is 1.8 meter /second.
5. Environment control system.
Environment controller: Agrologic 610, Agrologic 616, Rotem AC2000, AC2000 PLUS, according to farm capacity or your requests.
Electric control box: Brand elements.
>>
