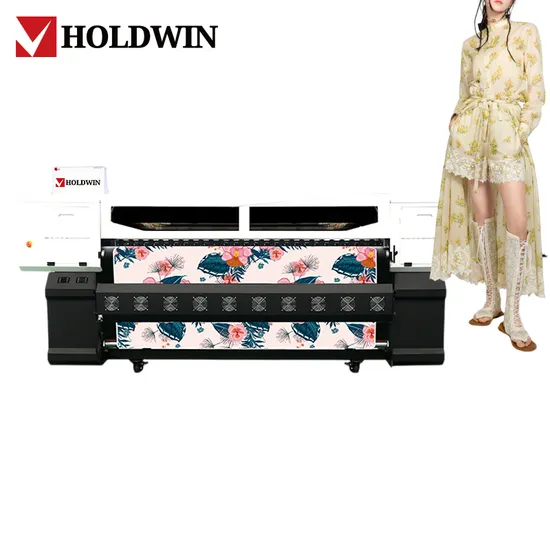

High-Speed Good Quality 3.2m Sublimation Printer 8*I3200-A1 Printhead Textile Printing Machine

Product Description

Model	HOLDWIN-3208TX
speed	1Pass	450m²/h
	2Pass	230m²/h
Print Head	8*i3200-A1 Print Heads
Print Width	≤3250mm
ink Cartridges	Kind	Dye Sublimation Ink
Color	CMYK
Supply	Siphon
Printer Media	Heat Transfer Paper
Drying structure	External multi-stage automatic control wind and heat all-in-one dryer
RIP Software	Riprint
Support image	JPG / TIFF / PDF,etc
Computer Configuration	Operating System	win7-64 bit / win10 64-bit
	Hardware Requirements	CPU: i7 Processor (9th generation or higher) Hard Disk 500g+ (solid state disk) Operating Memory 16g,
		Graphics Card: ATI display 4G memory, Motherboard: ASUS, Gigabyte
	Data transmission	USB3.0
Power	Input Voltage	AC 220 V ± 5%, 16A, 50 HZ± 1
	Printing system	1500W
	Drying unit power	Maximun 20KW
Machine Weight	950kg
Mashine Size	4770*1445*2100 mm
Package weight	1050kg
Package size	5050*1140*1750 mm
Environment	Put onTemperature:59F to90F [15C to 32C] / Humidity: 35 to 80% (no condensation)
	Put off Temperature:41 F to 104 F [5C to 40C] / Humidity: 20 to 80% (no condensation)

The 3.2m Digital Sublimation Printer 8 Printhead I3200-A1 Industrial High Speed Dye Textile Printing Machine is used for household goods, clothing, masks, T-shirt printing, canvas bags, cushions, luggage products, flags, curtains, doors and windows, sofa table mats, umbrella tents and other textile fabrics.
This printer adopts advanced board control technology and is equipped with 8 i3200 print heads, each head has 3200 heads, 3.5dpi ink droplets, and the printing accuracy can reach 3600dpi. The industrial- grade design ensures the durability of the print head.
Dual rail structure, upgraded motor, smoother operation of the car; High-strength appearance mechanism, more stable and reliable; Warm air structure and silent suction fan to reduce noise; Equipped with a constant temperature heating system, the head is not affected by the ambient temperature during the
printing process; Use multi-point adaptive pressure wheels, accurate pressure control, smooth paper walking, and achieve continuous
and stable printing. Q&A
Q: What is the brand of this machine?
A: The brand of this machine is HOLDWIN
Q: What is the model number of the printer with a maximum print width of ≤3250mm?
A: HOLDWIN-3208TX
Q: What is the speed of the HOLDWIN-3208TX printer in 1Pass mode?
A: 450m²/h
Q: What type of ink does the HOLDWIN-2608TX use?
A: Dye Sublimation Ink
Q: What are the supported image formats for this model?
A: JPG / TIFF / PDF, etc.
Q: What operating systems are supported by this printer?
A: win7-64 bit / win10 64-bit
Q: What are the hardware requirements for the computer configuration?
A: CPU: i7 Processor (9th generation or higher), Hard Disk: 500g+ (solid state disk), Operating Memory: 16g, Graphics Card: ATI display 4G memory, Motherboard: ASUS, Gigabyte
Q: What is the input voltage requirement for this printer?
A: AC 220 V ± 5%, 16A, 50 HZ± 1
Q: What is the maximum power consumption for the drying unit of the HOLDWIN-3208TX?
A: Maximum 20KW
Q: How much does the HOLDWIN-3208TX printer weigh?
A: 950kg
Q: What is the machine size of the HOLDWIN-3208TX printer?
A: 4770*1445*2100 mm
Q: What is the printing system power requirement for both models?
A: 1500W
Q: What is the package weight of the HOLDWIN-3208TX?
A: 1050kg
Q: What are the environmental temperature requirements when the machine is turned off?
A: Put off Temperature: 41 F to 104 F (5C to 40C) / Humidity: 20 to 80% (no condensation)
Q: What is the data transmission interface for this model?
A: USB3.0
Q: What kind of printer media is used by this model?
A: Heat Transfer Paper.

---
