HDPE Oil Pot Bottle Crushing Washing Recycling System with CE

Product Description

Product Description
HW49 Chemical barrel washing recycling line
Raw materials: chemical barrel, chemical tank, machine oil barrel, engine oil kettle, etc
01 - Features


The recycling line system is designed for the recycling and disposal project of hazardous waste hw49 plastic packaging containers. According to the classification requirements in the national list of hazardous wastes, the common plastic packaging containers in our industry, such as chemical barrels, chemical tanks, machine oil barrels, engine oil pots and so on, are hw49 industrial hazardous wastes. It does not belong to general solid waste or industrial waste, and its collection, storage, transportation and disposal must meet the relevant requirements of the law of the people's Republic of China on the prevention and control of environmental pollution by solid waste. Therefore, the process rigor, overall sealing and zero manual intervention of the system are essentially different from the traditional solid waste treatment.





02 - Process flow




03 - Process introduction

The main units of the recycling system: 1. Crushing pretreatment; 2. First residual harmless collection; 3. Fine crushing + secondary residual harmless collection (or destruction); 4. Powerful washing and decontamination; 5. Dehydration In view of the differences in the chemical properties of the residues in the packaging containers, the harmless collection process and the types of washing equipment in the production lines are quite different, which is a typical non-standard customized production line. At present, POLYTEC has certain experience in the recycling and disposal of packaging containers for liquid hydrophilic chemical raw materials, some halogens, mineral oils, non-cyanide organic compounds and other types of raw materials. At the same time, our company has been actively researching new types of hazardous waste harmless recycling lines. Welcome to visit the factory and communicate. Hydrophilic solution container chemical blue barrel washing line: Waste HDPE chemical barrels (less than 200L): 1. Barrel body: HDPE high-density polyethylene; 2. Lid: HDPE high-density polyethylene; 3. Label: self-adhesive label paper; 4. Residual: conventional solution is liquid, hydrophilic, and the residual rate is not more than 5%; 5. Impurities: a small amount of mud and sand on the surface of the barrel.

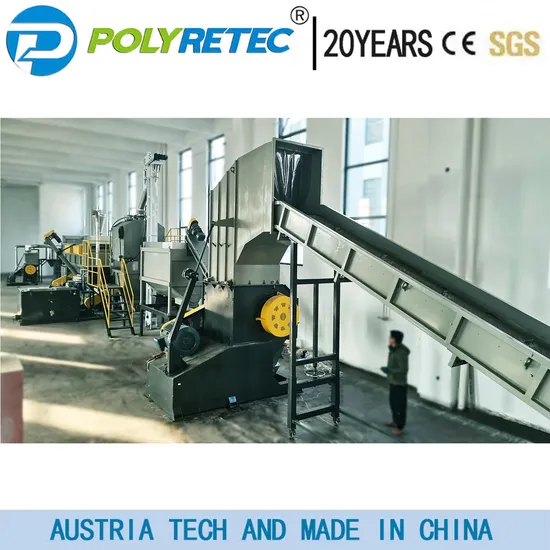

04 - Photos









05 - Project parameters

Model	Capacity	Installation power	Space	Steam	Compressed air	Water
PEPP500	500kg/h	98kw	150m2	*	0.5m3	2m3
PEPP1000	1000kg/h	150kw	200m2	*	0.5m3	2m3
PEPP2000	2000kg/h	190kw	300m2	*	0.5m3	3m3

06 - Unit consumption

No	Name	Consumption/ton	No	Name	Consumption/ton
1.	Electricity	50-80kw	3.	Clean agent (option)	0-3kg
2.	Steam(option)	0-100kg	4.	Water	0.8-1.5T

After Sales Service


Certifications

---
