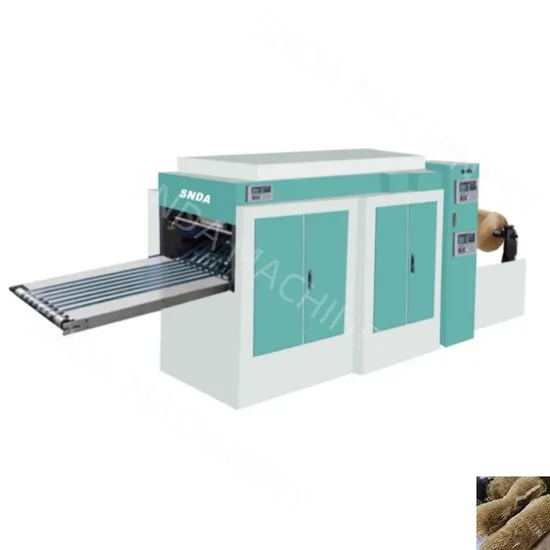

This machine is a newest design with high speed 200meter per min output.After total 3 process of perforating,folding and stacking,the finished paper can be a pile in constant length.
And these finished paper sheet is used to feed to PaperEZ,RonPak,FillPak,PadPak etc.to make wrapping as cushion material in paper box.
Technical parameters | Machine model | SD-PF800B |
| Max material width | 780mm |
| Machine working speed | 150m/min |
| Unwinding diameter | 0-1200mm |
| Stacking system | By conveyor |
| Unwinding stand weight | 1 Ton |
| Unwinding shaft | 3" inflatable air shaft |
| Machine size | 3500*1500*1600mm(LxWxH) |
| Machine weight | 2500KG |
| Power supply | 380V 3 Phase |
|
