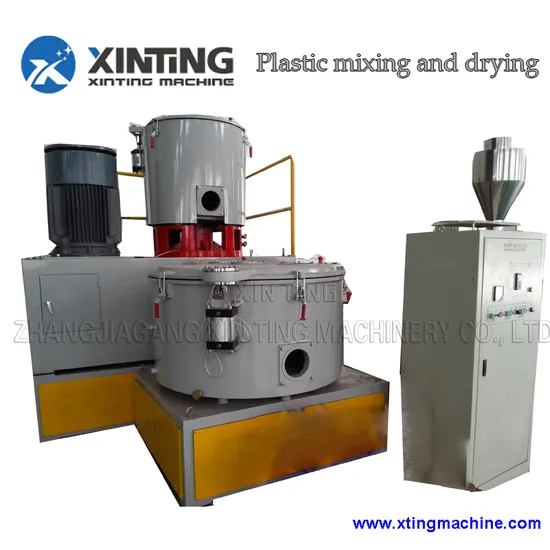

SRL-Z Series High Speed Plastic Heating Cooling Mixer Unit Machine

Product Description

SRL-Z Series High Speed Plastic Heating Cooling Mixer Unit Machine Application :
It is widely used to compound PVC resin with stab some other materials in the industry of PVC extrusion, such su: production of pvc ceiling, pvc pipe,pvc board,pvc profile,pvc pelletizing and so on .
Feature :
1.The technology of the mainshaft has two functions of electric and steam heating.
2.Two layers of sealing technology is adopted in the pot cover.The opening of the heating mixed cover adopted the airopening device and the opening of the cooling mixed cover adopted pneumatic start.

Parameter :

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total volume (L)	100/200	200/500	300/600	500/1000	800/1600
Effective Volume (L)	65/130	150/320	200/360	330/640	600/1050
Rotating Speed (RPM)	650/1300/200	475/950/130	475/950/100	430/860/50	370/740/50
Mixing time (Min.)	8-12	8-12	8-12	8-15	8-15
Motor power (KW)	14/22/7.5	30/42/11	40/55/11	55/75/15	83/110/22
Overall dimension(mm)	1950*1600*1800	4580*2240*2470	4800*2640*2480	5600*3000*3100	5170*3200*4480
Weight(kg)	2200	3400	3600	6500	9800

Advantages:
Stainless steel paddle with scientific structure able to mix raw material completely; minimize load, save time and electricity;
Made of premium stainless steel, high strength and easy to clean.
Vertical structure with castor wheels, small size, removing easily.
Vertical reducer motor adopted ensures low noise and long operation hours.
Fast complete mixing, low energy consumption and high productivity.
Pail cover and bottom parts and compress formed precisely matched and durable.
Mixing time able to set within 0~30 minutes.

---
