for Wedm Machine Wire Cut EDM High Speed Wire Gamma Wire 0.25mm 0.20mm

Product Description

Product Description

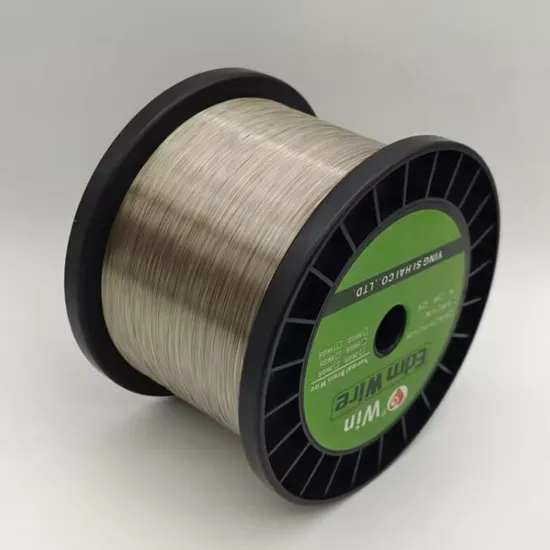

For WEDM Machine Wire Cut Edm High Speed Wire Gamma Wire 0.25mm 0.20mm
Noted : Blacked one are the normal specifications which can be provided.


Features and Applications


1. Due to its special surface imitation fish scale micro-texture layer, the cutting resistance can be significantly reduced, the cooling rate is increased, and the cutting rate is increased, thereby effectively improving the performance of the edm wire.

2. The main cutting speed is increased by 20%-30% on average compared to the brass wire. After cutting three or four times, the overall speed is increased by more than 10% on average over the brass wire. Especially in the processing of thick workpieces and cemented carbide materials, the speed increase is more obvious.
3. At the same time, compared with ordinary zinc coated wire , the high-speed line is not easy to drop powder, which reduces the pollution of the processing environment and reduces the frequency of maintenance and cleaning of the machine and related components.
Package

Type	Dia. 0.10mm	Dia. 0.15mm	Dia. 0.20mm	Dia. 0.25mm	Dia. 0.3mm	Spool/ box
K125(4kg)	*	*	*	*	*	4
K160(8kg)			*	*	*	2
K200(16kg)			*	*	*	1
K250(25kg)			*	*	*	1
P5X(3kg)	*	*	*	*	*	4
P5 (5kg)			*	*	*	4
P10 (10kg)			*	*	*	2
P20 (20kg)			*	*	*	1

Production Process

Products are involved in
1. W/EDM spare parts: wire guide/diamond guide, water nozzle, power feed contact, isolator plate,
rollers, belt, cable wire, guide base.
2. Replacement parts for EDM drill machines: pipe guide, ceramic guide,drill chuck, rubber seal,
pipe guide,collect, high press pump, rotational head, motor.
3. EDM tools and related: stainless holder, stainless vise, stainless bridge, super magnet,
magnetic chuck, stainless cap screw.
4. EDM consumables: EDM brass wire, EDM brass tube, EDM copper tube, EDM ion exchange resin,
EDM moly wire/Molybdenum wire, EDM rust remover,EDM filter.

Company Profile
Dongguan Ying sihai Precision Mould Co., Ltd was founded in 2010 and is located in Chang'an Town Dongguan City, Guangdong Province which is the biggest and famous Mould Town . The location is excellent and the transportation is convenient..The company is mainly engaged in the production and sales of E D M spare parts , Non-standard custom hardware and E D M Filters products .Meanwhile , we also provide E D M wires ,E D M Ion exchange resin, E D M Molybdenum wire so on . These products are used in all slow, medium and fast wire cutting E D M machines , and supply "one-stop" service.
Our company knows that the development of the company depends on the innovation and quality of the products. , so our products have strict quality control from the procurement of raw materials to the sale of finished products and management of the environment. Therefore, we have obtained I S O 9 0 0 1 and I S O 1 4 0 0 1 certificates.
Our company's products have been sold in more than 69 countries at home and abroad. Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products, competitive prices and perfect after-sales service. And we also can accept O E M and O D M order .
We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiry soon.

Our Advantages


Logistics packaging

---
