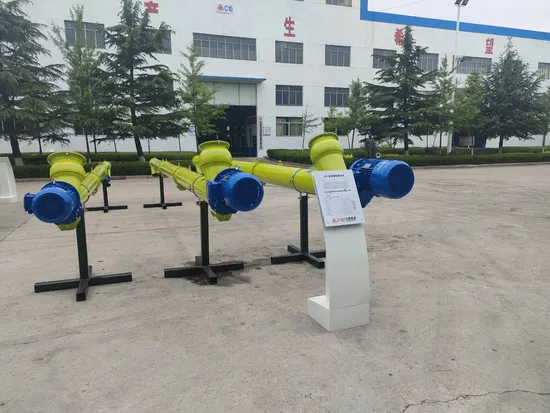

Lsy Series Cement Screw Conveyor for Concrete Plant

Product Description

Key features:
1. Energy Conservation, environmental protection, Modular design
2. High conveying efficiency and convenient loading and unloading.
3. Flexible Process Layout
4. Adopt one-time forming continuous blade, variable pitch type
5. Adopt Casting Aluminum Alloy Intermediate Hanger Connection, longer wear-resistant service life
6. The use of domestic first universal feed mouth, more conducive to installation, production
7. Multi-section assembly, easy to transform.
technical parameter:

type	power (kW)	conveying length L(m)	conveying angle α(°)	conveying capacity(t/h)	D1	D2	n-d	B
LSY168-6	4	6	≤45	25	300	330	8-φ14	10
LSY168-9	5.5	9	≤45	25	300	330	8-φ14	10
LSY168-12	7.5	12	≤45	25	300	330	8-φ14	10
LSY219-6	7.5	6	≤45	60	300	330	8-φ14	10
LSY219-9	11	9	≤45	60	300	330	8-φ14	10
LSY219-12	11	12	≤45	60	300	330	8-φ14	10
LSY219-15	15	15	≤45	60	300	330	8-φ14	10
LSY273-9	11	9	≤45	90	300	330	8-φ14	10
LSY273-12	15	12	≤45	90	300	330	8-φ14	10
LSY273-15	15	15	≤45	90	300	330	8-φ14	10
LSY323-9	18.5	9	≤45	110	370	420	8-φ18	15
LSY323-12	22	12	≤45	110	370	420	8-φ18	15

Our company is a medium-sized manufacturing enterprise, focusing on construction machinery research and development, manufacturing, sales and services. Founded in 1970 in Haiyang, a coastal city in east China, it is an employee-owned joint-stock company.The number of employees has grown from a dozen at the beginning to nearly 2,000 at present after nearly half a century of development. 60% of the employees have more than 20 years of experience in relevant professional fields. The stable employees team and open corporate culture make the accumulation and inheritance of enterprise knowledge. The company covers an area of 1.8 million square meters, including the construction area of 900,000 square meters, with a large number of detection, cutting, processing molding of the international top equipment. The product development team is led by senior engineers in the industry, and has a research and development branch in Germany. Provide customers the personalized and optimized product solutions quickly through the top-ranking software tools combined with the advantages of the international scope. The marketing service network covers the whole world, providing professional services from product consultation, purchase and use throughout the product life cycle.
Our business scope falls in HZS series concrete mixing plant, JS series concrete mixer,PLD series concrete batching machine,TC series tower crane, SC series construction hoist, WBZ series stabilized soil mixing plant, HBTS series concrete pump,SBS series mortar pump,JZL series electric crawler pile drilling machine,JZB series walking pile drilling machine ,FYG series truck mixer,LSY series Screw Conveyor,all kinds of cement silo etc,.

---
