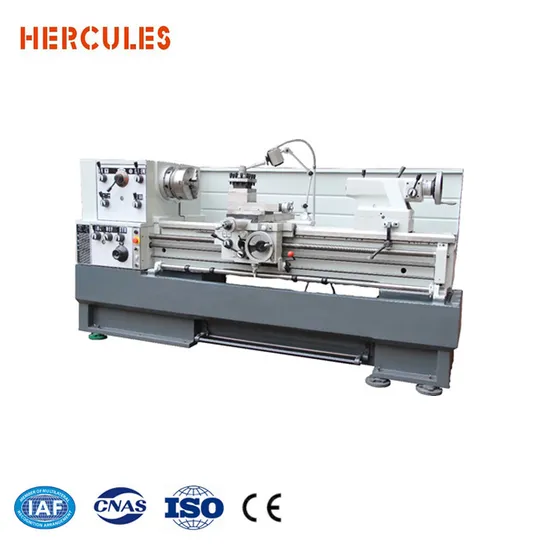

C6241/C6246 Precision Horizontal manual lathe
| Specification | C6241(D) | C6246(D) |
| Max. Swing over bed | Φ410mm | Φ460mm |
| Max. Swing over cross slide | Φ224mm | Φ274mm |
| Max. Swing over gap | Φ640mm | Φ690mm |
| Max. Length of workpiece | 1000mm/1500mm |
| Width of bed | 300mm |
| Spindle nose | D1-6 |
| Spindle bore | Φ58mm (Φ82mm) |
| Taper of spindle bore | M.T.#6 |
| Range of spindle speed | 12 changes 25-2000r/min |
| Max. travel of compound rest | 120mm |
| Max. travel of cross slide | 290mm |
| Leadscrew pitch | Inch 4 T.P.I metric 6mm |
| Max. section of tool | 25x25mm |
| Range of longitudinal feeds | 42 kinds 0.031-1.7mm/rev |
| Range of cross feeds | 42 kinds 0.014-0.784mm/rev |
| Metric threads range | 41 kinds 0.1-14mm |
| Inch threads range | 60 kinds 2-112 T.P.I |
| Diametrical pitches range | 50 kinds 4-112 D.P. |
| Module pitches range | 34 kinds 0.1-7 M.P. |
| Dia. Of tailstock sleeve | Φ60mm |
| Travel of tailstock sleeve | 120mm |
| Morse taper of tailstock sleeve | M.T.#4 |
| Power of main motor | 5.5 kw (7.5HP) |
| Power of coolant pump | 90 w |
